120 mm Mortar Bombs

120 mm PRACT 120

120 mm PRACT 120

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

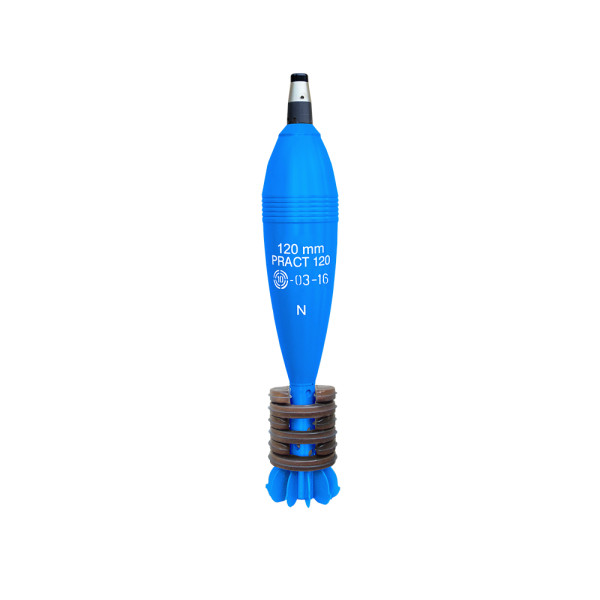

120 mm Mortar Bomb PRACT 120

NSN: 1315-50-001-2548

The 120 mm PRACT 120 has been designed as suitable ammunition for the 120 mm Mortars.

The 120 mm Practice Mortar Bomb is ideal for training purposes. It has an inert load and its flight ballistics are identical to those of the high explosive version.

Main Features:

It is available with either a live impact fuze AF69, which will indicate impact at target, or with an inert fuze.

The Mortar Bomb HE 120 can be fired from 120 mm Mortars M-38, M-43, 2B11 and 2S12-Sani.

Do not fire the PRACT 120 with Ignition Cartridge only!

The PRACT 120 can be fired with up to 6 Increment Charges.

BALLISTIC DATA
Average Maximum Pressure (Crusher), kgf/cm21 030 (0+6)
Average Max Range, m5 840 (0+6)
Average Muzzle velocity, m/s274 (0+6)
BASIC CHARACTERISTICS
Body materialSpheroidal Graphite Cast Iron
Length fuzed, mm674 max
Weight fuzed, kg16 max
Weight of Inert filling, kg1.5 max
Highest Max Pressure (Crusher), kgf/cm21 100 (0+6)
Operating Temperature Range, °Cfrom minus 40 to 50
Packing
TypeWooden case, containing: 2 pcs Unfuzed Mortar bombs +2 pcs Ignition Cartridges (packed in a cardboard box) + 8 pcs Increment Charges (packed in two cardboard boxes, each one containing 4 pcs Increment Charges).Fuzes Wooden case with 3 metal airtight boxes, as each metal airtight box contains 28 Fuzes (84 Fuzes totally)
Wooden case dimensions, mm945x345x230875x398x206
Wooden case weight, kg5065
Wooden case volume, m30.0750.072
Class of explosion hazard, UN Code1.3C, UN 04171.2B, UN 0107
