23x115 mm ROUNDS FOR AIRCRAFT AUTOMATIC GUNS GSH-23, GSH-23L, GSH-6-23M AND AM-23

TP

TP

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

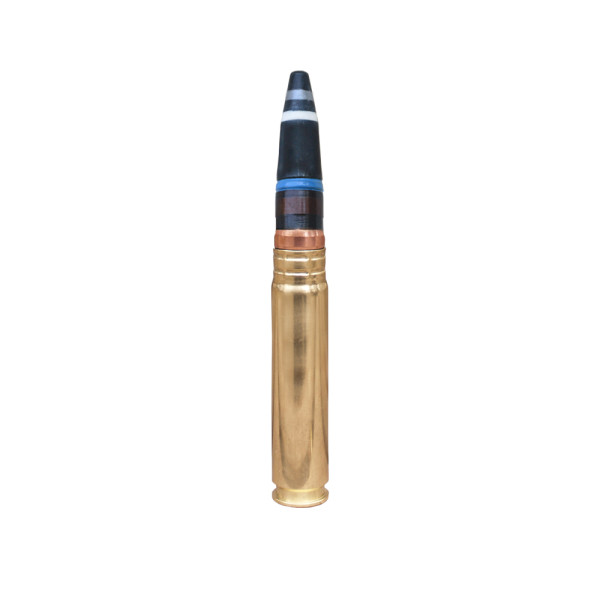

23x115 mm Rounds TP with Target Practice Projectile

NSN:1305-50-001-2617

Overview

The Rounds are compatible with 23 mm GSh-23, GSh-23L, GSh-6-23M and AM-23 Automatic guns installed on Su-24, MiG-31, Su-15, MiG-21, MiG-23, Tu-22M, Tu-95s
and llyushin II-76 aircraft and Mi-24VP, W-3WA helicopters, and others;
intended for training purposes.

Packing
44 rounds in one airtight metal box, three metal boxes (132 pcs totally) in a wooden case
23x115 mm TP
Wooden case dimensions, mm875x398x206
Gross weight, kg61
Volume, m30.072
Specifications
23x115 mm TP
Caliber,mm23x115
Weapon systems23 mm GSh-23L, AM-23 and GSh-6-23M Aircraft guns
Round length, mm from 197.86 to 200.66
Round weight, g 326 approx.
Projectile weight, g 169 approx.
Average muzzlevelocity, Voaver, m/s 715
Average max Pressureat 15°C Pmaxaver, Mpa 294.2
Propellant type 4/7 Cgr
Case material brass
Class of Hazard, UN number1.2C, UN 0328
Operational temperature range, °Cfrom minus 50 to 50
