TP-T

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

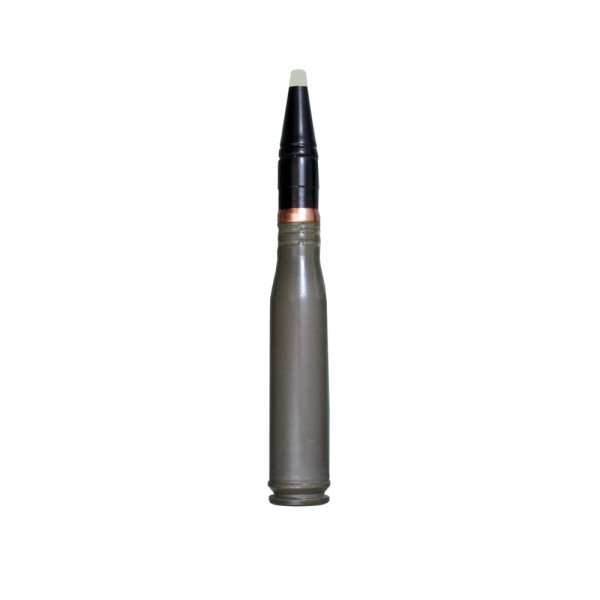

23x152 mm Rounds TP-T with Target Practice Tracer Projectile

NSN: 1305-50-000-0419

The Rounds are designed to be fired from familly of 23 mm Auxiliary Barrels intended for:

-85 mm tank gun, 100 mm tank gun D10T, 100 mm anti-tank gun Mt-12

-122 mm self-propelled howitzer 2S1, 122 mm howitzer M30,

-130 mm field gun M46, 152 mm gun-howitzer D-20,

-52 mm self-propelled gun-howitzer 2S3, 152 mm howitzer-gun ML-20

Packing 28 Rounds in one airtight metal box, three metal boxes (84 pcs. totally ) in a wooden case
Wooden case dimensions, mm	875x398x206
Gross weight, kg	55
Volume, m³	0.072

Specifications
Calibre, mm	23x152
Projectile type	Target Practice Tracer
Round length, mm	from 234.28 to 237.12
Round weight, g	440 approx.
Projectile weight, g	185.6 approx.
Primer	Percussion Primer No3
Tracer burning time, s	not less than 5
Average muzzle velocity, V_oaver, m/s	910
Average max Pressure at 15°C Pmax_aver, Mpa	not more than 286.84
Propellant type	5/7 Cfl
Case material	steel
Operational temperature range, °C	from minus 50 to 50
Class of explosion hazard	1.2C, UN 0328
