30 mm RHV-HEF

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

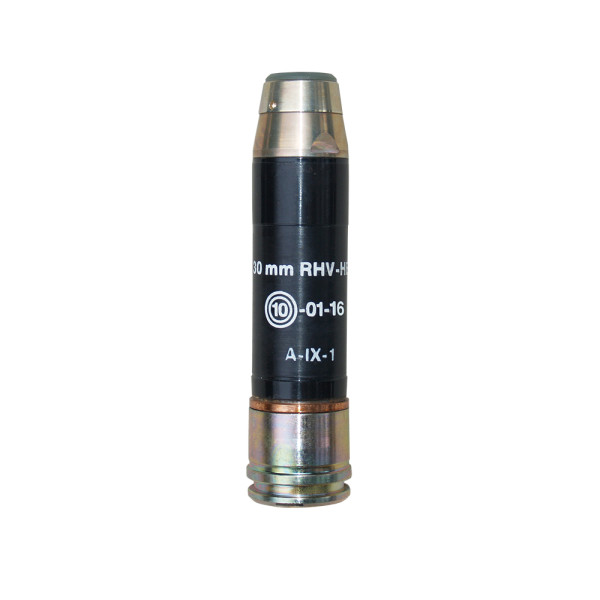

30 mm Round RHV-HEF with High Explosive Fragmentation Grenade

NSN: 1305-50-000-7421

The 30 mm Round RHV-HEF provides effective action against enemy troops in open terrain or in light shelters at distance of up to 1730 m.

Weapon compatibility:

The ammunition is designed for use with automatic grenade launchers:

Packing 36 Rounds are packed in one air-tight metal box, three metal boxes are packed in one wooden case (a total of 108 rounds in one wooden case)	RHV-HEF
Wooden case dimensions, mm	875x398x206
Wooden case gross weight, kg	57
Wooden case volume, m³	0.072

TECHNICAL CHARACTERISTICS	RHV-HEF
Type	High Velocity, High-Explosive, Fragmentation
Calibre, mm	30
Round length, mm	133 max
Round weight, kg	0.350
Grenade weight, kg	0.275
Explosive charge weight, kg	0.036
Max effective range, m	1730
Average muzzle velocity, m/s	185
Probable deviation, m/s	not more than 2.5
Average max pressure of the powder gases, MPa	not more than 122.5
Radius of defeat, m	not less than 7
Operation Temperature Range, °C	from minus 50 to 50
Elements of the Round
Grenade	High Explosive Fragmentation
Fuze	AF35
Explosive filling	A-IX-1
Cartridge case	Steel
Propellant charge	NBPl-14-10
Primer	KVM-3
Fuze	AF35
Type	Point detonating, with SQ and check action, distance-arming, self-destruction
Arming distance, m	from 10 to 60
Details of arming function	3 steps of safety
Self-destruction time, s	not less than 27
CLASS OF EXPLOSION HAZARD	1.1E; UN 0006
