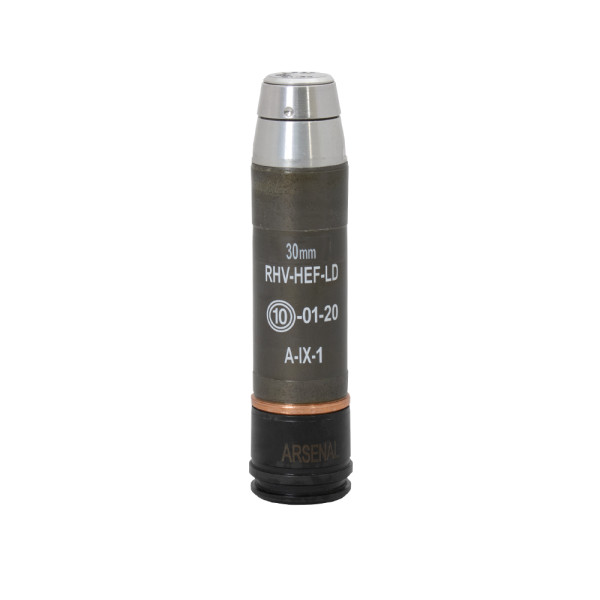

30 mm Round RHV-HEF-LD with High Explosive Fragmentation
Long Distance Grenade
NSN: 1305-50-001-5906
The 30 mm Round RLV-HEF-LD with High-Explosive Fragmentation Long Distance Grenade is intended to defeat manpower and combat materials by means of fragments at range of up to 2 100 m. Rounds should be fired from AGS-17 and AGS-30 grenade launchers, including their modifications, mounted on various hardware models.
The Round is fitted with distance-armed and self-destruction Fuze AF37.
Overview
The ammunition is designed for use with automatic grenade launchers:
- AGS -17, AGS-30
- AG-17A, AG-17D, AG-17M
- AGL-17, AGL-30
Main Features:
| TECHNICAL CHARACTERISTICS |
RHV-HEF-LD |
| Type |
High Velocity,Long Distance,
High-Explosive, Fragmentation,
|
| Calibre, mm |
30 |
| Round length, mm |
max 132.50 |
| Round weight, kg |
max 0.347 |
| Grenade weight, kg |
max 0.280 |
| Explosive charge weight, kg |
0.036 |
| Max effective range, m |
2 100 |
| Average muzzle velocity, m/s |
185±3 |
| Probable deviation, m/s |
not more than 2.5 |
| Average max pressure of the powder gases, MPa |
not more than 122.5 |
| Radius of defeat, m |
not less than 7 |
| Operation Temperature Range, °C |
from minus 50 to 55 |
| Elements of the Round |
| Grenade |
High Explosive Fragmentation |
| Fuze |
AF37 |
| Explosive filling |
A-IX-1 |
| Cartridge case |
Steel |
| Propellant charge |
NBPl-14-10 |
| Primer |
KVM-3 |
| Fuze AF37 |
|
| Type |
Point detonating, with SQ
and check action, distance-armed, self-destruction |
| Arming distance, m |
from 10 to 60 |
| Details of arming function |
3 steps of safety
|
| Self-destruction time, s |
not less than 31 |
|
SHELF LIFE:
|
10 years, if stored in storeroom conditions, in the original non-opened packing of the manufacturer, strictly observing all handling and storage instructions of the Manufacturer.
|
| CLASS OF EXPLOSION HAZARD |
1.1E; UN 0006 |
|
PACKING: RHV-HEF-LD
|
|
Option 1:
36 Rounds are packed in one air-tight metal box, three metal boxes are packed in one wooden case (a total of 108 rounds in one wooden case).
Case dimensions, mm 875 x 398 x 206
Gross weight, kg 54
Wooden case volume, m3 0.072
|
|
Option 2:
52 Rounds are packed in one air-tight metal box, three metal boxes are packed in one wooden case (a total of 156 rounds in one wooden case).
Case dimensions, mm 875 x 398 x 206
Gross weight, kg 71
Wooden case volume, m3 0.072
|
Packing Option 1: 36 Rounds are packed in one air-tight metal box, three metal boxes are packed in one wooden case (a total of 108 rounds in one wooden case) | RHV-HEF-LD |
|---|
| Case dimensions, mm | 875 x 398 x 206 |
| Gross weight, kg | 54 |
| Wooden case volume, m3 | 0.072 |
| Option 2: 52 Rounds are packed in one air-tight metal box, three metal boxes are packed in one wooden case (a total of 156 rounds in one wooden case) | |
| Case dimensions, mm | 875 x 398 x 206 |
| Gross weight, kg | 71 |
| Wooden case volume, m3 | 0.072 |
TECHNICAL CHARACTERISTICS | RHV-HEF-LD |
|---|
| Type | High Velocity,Long Distance, High-Explosive, Fragmentation | | |
| Calibre, mm | 30 |
| Round length, mm | max 132.50 |
| Round weight, kg | max 0.347 |
| Grenade weight, kg | max 0.280 |
| Explosive charge weight, kg | 0.036 |
| Max effective range, m | 2 100 |
| Average muzzle velocity, m/s | 185±3 |
| Probable deviation, m/s | not more than 2.5 |
| Average max pressure of the powder gases, MPa | not more than 122.5 |
| Radius of defeat, m | not less than 7 |
| Operation Temperature Range, °C | from minus 50 to 55 |
| Elements of the Round | |
| Grenade | High Explosive Fragmentation |
| Fuze | AF37 |
| Explosive filling | A-IX-1 |
| Cartridge case | Steel |
| Propellant charge | NBPl-14-10 |
| Primer | KVM-3 |
| Fuze AF37 | |
| Type | Point detonating, with SQ and check action, distance-armed, self-destruction |
| Arming distance, m | from 10 to 60 |
| Details of arming function | 3 steps of safety |
| Self-destruction time, s | not less than 31 |
| SHELF LIFE: | 10 years, if stored in storeroom conditions, in the original non-opened packing of the manufacturer, strictly observing all handling and storage instructions of the Manufacturer. |
| CLASS OF EXPLOSION HAZARD | 1.1E; UN 0006 |
