30 mm Rounds for Automatic Grenade Launcher AGS-17, AG-17A, AGS-30, AGL-30M

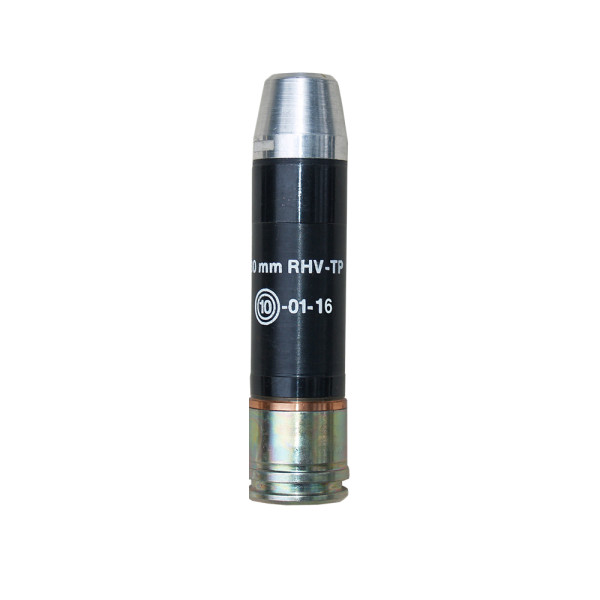

30 mm RHV-TP

30 mm RHV-TP

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

30 mm Round RHV-TP with Target Practice Grenade

NSN: 1305-50-001-4547

The 30 mm Round RHV-TP is used for training of army units, ensuring simulation of a real combat firing. The RHV-TP Round with its overall dimensions, ballistic and weight characteristics corresponds to RHV-HEF & VOG-17.

Overview

Weapon compatibility:

30 mm Automatic Grenade Launchers:
- AGS -17;
- AG - 17A;
- AGS – 30;
- AGL-30M.

Packing
3 metal airtight boxes (36 pcs. in each box), placed in a wooden case (108 pcs. totally)
RHV-TP
Case dimensions, mm875x398x206
Gross weight, kg55
Volume, m30.072
TECHNICAL CHARACTERISTICS
RHV-TP
TypeTarget Practice
Calibre, mm30
Round length, mm133 max
Round weight, kg0.350
Grenade weight, kg0.280
Max effective range, m1730
Muzzle velocity, m/s185 ±3
Probable deviation, m/snot more than 2.5
Max average pressure of the powder gases, MPanot more than 122.5
Operation Temperature Range, °Cfrom minus 50 to 50
Elements of the Round
GrenadeTarget Practice
FuzeBallistic plug
Explosive fillingInert
Cartridge caseSteel
Propellant chargeNBPl-14-10
PrimerKVM-3
CLASS OF EXPLOSION HAZARD1.2C; UN 0328
