30x165 mm ROUNDS FOR AIRCRAFT AUTOMATIC GUNS GSH-30, GSH-30K, GSH-6-30 AND GSH-301

AP-T

AP-T

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

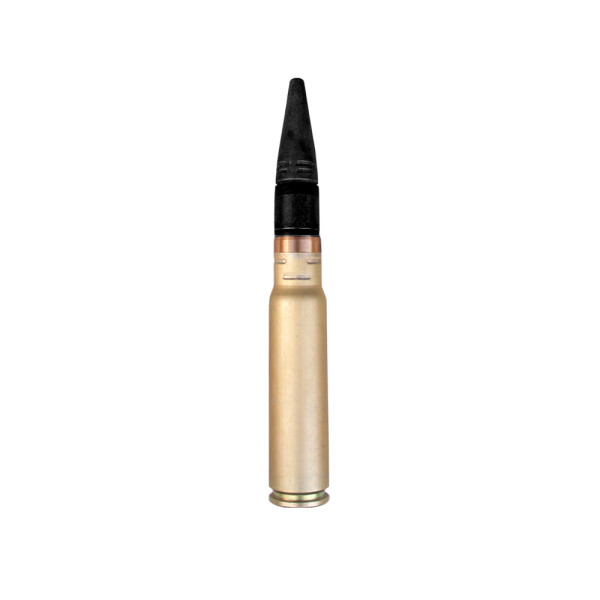

30x165 mm Round AP-T with Armour-Piercing Tracer Projectile

NSN:1305-50-000-7422

Overview

The Rounds are used to defeat manpower, ground unarmored and light armored vehicles, enemy manpower and air targets.
The Rounds are compatible with 30 mm GSh-30, GSh-30K, GSh-6-30 and GSh-301 automatic guns installed on Su-25, Su-27, Yak-141, MiG-29 aircraft and Mi-24P helicopters, and others.



Packing
18 Rounds in one airtight metal box, three metal boxes (54 pcs. totally ) in a wooden case
Wooden case dimensions, mm875x398x206
Gross weight, kg65
Volume, m30.072
Specifications
Caliber, mm30x165
Projectile typeArmour Piercing Tracer
Round length, mmfrom 281.99 to 285.44
Round weight, g844 approx.
Projectile weight, g400 approx.
Electric primer cartridgeEKV-30M
Tracer burning time, snot less than 3.5
Average muzzle velocity, V0aver, m/s
● Barrel length 1500 mm840±10
● Barrel length 2400 mm930±10
Average max Pressure at 15°C Pmaxaver, Mpanot more than 318.7
Propellant type6/7fl
Case materialSteel (zinc plated)
Penetration*20
Operational temperature range, °Cfrom minus 50 to 50
CLASS OF EXPLOSION HAZARD   1.2C; UN 0328
* The rounds provide the Penetration 20 mm of the armour plate placed at distance 1000 m, at angle of impact 60° NATO, at aircraft velocity 200m/s.
