30x165 mm ROUNDS FOR AIRCRAFT AUTOMATIC GUNS GSH-30, GSH-30K, GSH-6-30 AND GSH-301

HEI,HE-T,HEI-T

HEI,HE-T,HEI-T

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

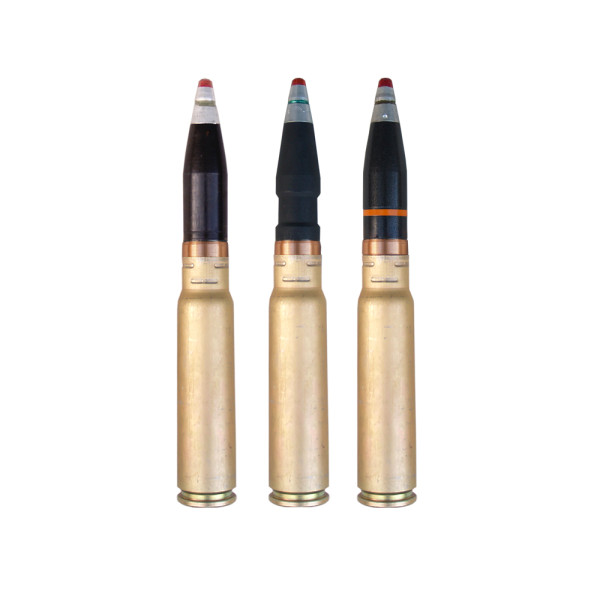

30x165 mm Round HEI with High-Explosive Incendiary Projectile

NSN:1305-50-000-7423

30x165 mm Round HE-T with High-Explosive Tracer Projectile

NSN:1305-50-001-1955

30x165 mm Round HEI-T with High-Explosive Incendiary  Tracer Projectile

NSN:1305-50-001-1668



Overview

The Rounds are used to defeat manpower, ground unarmored and light armored vehicles, enemy manpower and air targets.
The Rounds are compatible with 30 mm GSh-30, GSh-30K, GSh-6-30 and GSh-301 automatic guns installed on Su-25, Su-27, Yak-141, MiG-29 aircraft and Mi-24P helicopters, and others.

The rounds ensures High Explosive & incendiary effect about 30 cm behind the point of impact inside the target.

Packing
18 Rounds in one airtight metal box, three metal boxes (54 pcs. totally ) in a wooden case
Wooden case dimensions, mm875x398x206
Gross weight, kg65
Volume, m30.072
Specifications
HE-THEI-T
Caliber, mm30x16530x165
Projectile typeHigh-Explosive TracerHigh-Explosive Incendiary with Tracer
Round length, mmfrom 282.15 to 284.84from 282.15 to 285.44
Round weight , g834 approx.832 approx.
Projectile weight, g384 approx.390 approx.
Electric primer cartridgeEKV-30MEKV-30M
Tracer burning time, sNot less than 9Not less than 1.5
Explosive filling typeA-IX-2A-IX-2
Explosive filling weight, g11.6 approx.43.5 approx.
Fuze typeAF34AF34
Average muzzle velocity, V 0aver, m/s880880
Average max Pressure at 15°C Pmaxav€žer, Mpanot more than 318.7not more than 318.7
Propellant type6/7fl6/7fl
Case materialSteel (zinc plated)Steel (zinc plated)
Operational temperature range, °Cfrom minus 50 to 50from minus 50 to 50
CLASS OF EXPLOSION HAZARD1.1E; UN 0006
Specifications
HEI
Caliber, mm30x165
Projectile typeHigh-Explosive Incendiary
Round length, mmfrom 282.15 to 285.44
Round weight , g832 approx.
Projectile weight, g390 approx.
Electric primer cartridgeEKV-30M
Explosive filling typeA-IX-2
Explosive filling weight, g48.5 approx.
Fuze typeAF34
Average muzzle velocity, V0aver, m/s890
Average max Pressure at 15°C Pmaxaver, Mpanot more than 313.8
Propellant type6/7fl
Case materialSteel (zinc plated)
Operational temperature range, °Cfrom minus 50 to 50
CLASS OF EXPLOSION HAZARD 1.1E; UN 0006
