TP, TP-T

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

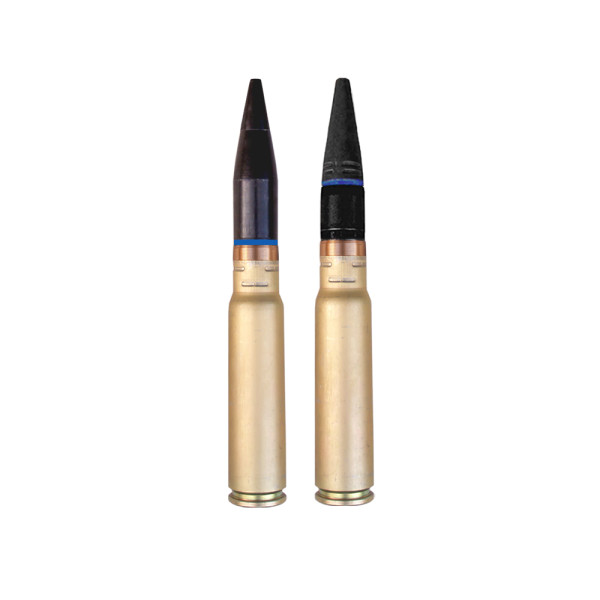

30x165 mm Round TP with Target Practice Projectile

30x165 mm Round TP-T with Target Practice Tracer Projectile

NSN:1305-50-001-1669

The Rounds are intended for Target Practice Firing and the same time ballistically matching the characteristics of HEI and AP-T Rounds.

Packing 18 Rounds in one airtight metal box, three metal boxes (54 pcs. totally ) in a wooden case
Wooden case dimensions, mm	875x398x206
Gross weight, kg	65
Volume, m³	0.072

Specifications	TP	TP-T
Caliber, mm	30x165	30x165
Projectile type	Target Practice	Target Practice Tracer
Round length, mm	from 282.15 to 285.44	from 281.99 to 285.44
Round weight, g	832 approx.	844 approx.
Projectile weight, g	390 approx.	403 approx.
Electric primer cartridge	EKV-30M	EKV-30M
Tracer burning time, s	-	not less than 3.5
Fuze type	Ballistic cap	-
Average muzzle velocity, V_{0 aver}, m/s	890	880
Average max Pressure at 15°C Pmax_aver, Mpa	not more than 313.8	not more than 313.8
Propellant type	6/7fl	6/7fl
Case material	Steel (zinc plated)	Steel (zinc plated)
Operational temperature range, °C	from minus 50 to 50	from minus 50 to 50
CLASS OF EXPLOSION HAZARD	1.2C; UN 0328	1.2C; UN 0328
