HE

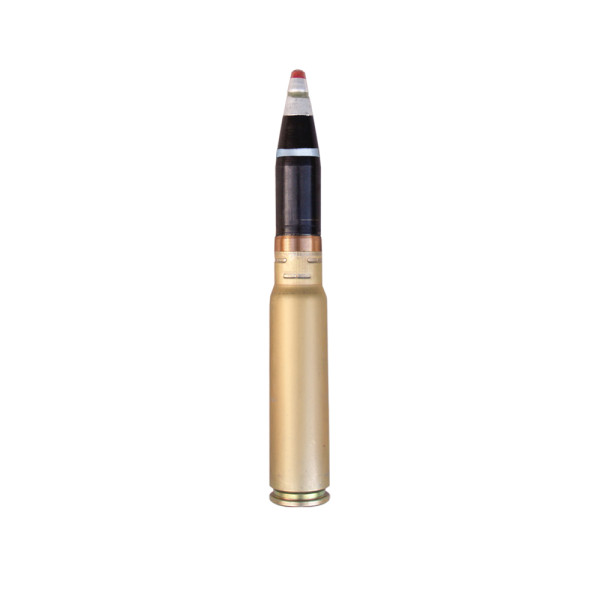

30x165 mm Round HE with High-Explosive Projectile

NSN:1305-50-001-5178

The Rounds are used to defeat man power, air and ground unarmored and light armoured targets, and enemy manpower.

The Rounds are compatible with automatic guns 2A38, 2A42, 2A72, mounted on Infantry Fighting Vehicles BMP-2, BMP-3, BMD-2, BMD-3, BTR-80A; Reconnaissance Vehicle "RIS"; Air-Defence Complex "Tunguska"; Attack Helicopters Ka-50, Mi-28 and Mi-24P.

Packing
54 rounds in three airtight metal box, packed in a wooden case with dimensions, mm	875x398x206
Wooden case Gross weight, kg	65
Wooden case Volume, m³	0.072

Packing

54 rounds in three airtight metal box, packed in a wooden case with dimensions, mm

875x398x206

Wooden case Gross weight, kg

Wooden case Volume, m³

0.072

Specifications	HEI
Weapon systems	Automatic Guns 2A38, 2A42, 2A72
Muzzle velocity, m/s	960±10
Calibre, mm	30x165
Primer	KV-3-1
Average max Pressure at 150C, P_{aver. max}, MPa	not more than 353.04
Cartridge case	Steel (zinc plated)
Fuze	AF32
Fuze arming distance, m	from 20 to 100
Self-destruction time, s	from 7.5 to 15.5
Round length, mm	from 289.45 to 292.84
Round Weight of, g	842 approx.
Projectile weight, g	389 approx.
Explosive filling	A-IX-1
Weight of explosive filling, g	48.5
Type of propellant	6/7 P-5 BPfl
Operational temperature range, C0	from minus 50 to 50
Concentration of fire: - On firing at distance 200 m, probable deviations, m – aside Bc and in vertical direction BB, not bigger than	0.2
Shelf life in store conditions, if stored in air-tight packages of the Manufacturer, provided that all handling and storage instructions of the Manufacturer are strictly observed, years	15
Class of explosion hazard, UN Number	1.1E, UN 0006
CLASS OF EXPLOSION HAZARD	1.1E; UN 0006

Specifications

HEI

Weapon systems

Automatic Guns 2A38, 2A42, 2A72

Muzzle velocity, m/s

960±10

Calibre, mm

30x165

Primer

KV-3-1

Average max Pressure at 150C, P_{aver. max}, MPa

not more than 353.04

Cartridge case

Steel (zinc plated)

Fuze

AF32

Fuze arming distance, m

from 20 to 100

Self-destruction time, s

from 7.5 to 15.5

Round length, mm

from 289.45 to 292.84

Round Weight of, g

842 approx.

Projectile weight, g

389 approx.

Explosive filling

A-IX-1

Weight of explosive filling, g

48.5

Type of propellant

6/7 P-5 BPfl

Operational temperature range, C0

from minus 50 to 50

Concentration of fire: - On firing at distance 200 m, probable deviations, m – aside Bc and in vertical direction BB, not bigger than

0.2

Shelf life in store conditions, if stored in air-tight packages of the Manufacturer, provided that all handling and storage instructions of the Manufacturer are strictly observed, years

Class of explosion hazard, UN Number

1.1E, UN 0006

CLASS OF EXPLOSION HAZARD

1.1E; UN 0006
