TP-T

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

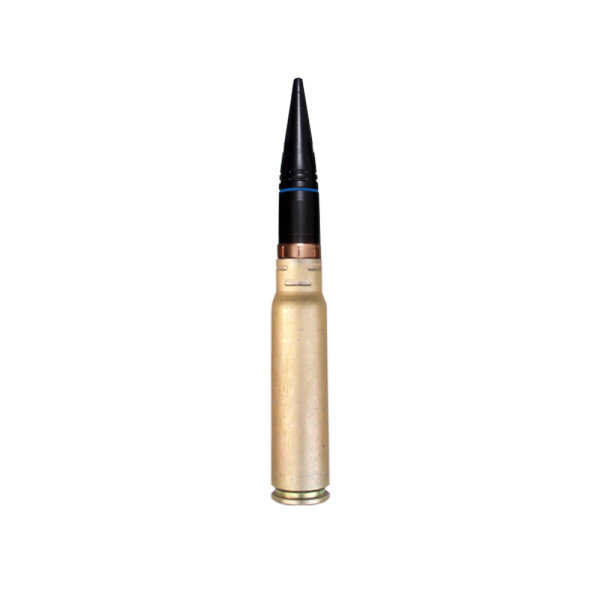

30x165 mm Rounds Inert

and TP-T with Target Practice Tracer Projectile

NSN:1305-50-001-2996

The Rounds are used for training purposes.

Packing 18 Rounds in one airtight metal box, three metal boxes (54 pcs. totally ) in a wooden case
Wooden case dimensions, mm	875x398x206
Gross weight, kg	65
Volume,
● M3	0.072

Specifications
Caliber, mm	30x165
Projectile type	Target Practice Tracer
Round length, mm	from 289.39 to 292.84
Round weight , g	858 approx.
Projectile weight, g	400 approx.
Primer	KV-3-1
Tracer burning time, s	not less than 3.5
Propellant type	6/7 P-5 BPfl
Average muzzle velocity, V_{0 aver}, m/s	970
Average max Pressure at 15 °C Pmax._aver., MPa	not more than 353.04
Case material	Steel (zinc plated)
Operational temperature range, °C	from minus 50 to 50
CLASS OF EXPLOSION HAZARD	1.2C; UN 0328
