30x165 mm ROUNDS FOR AUTOMATIC NAVAL WEAPON SYSTEMS AK-306, AK-630 AND AK-630M

HE-T

HE-T

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

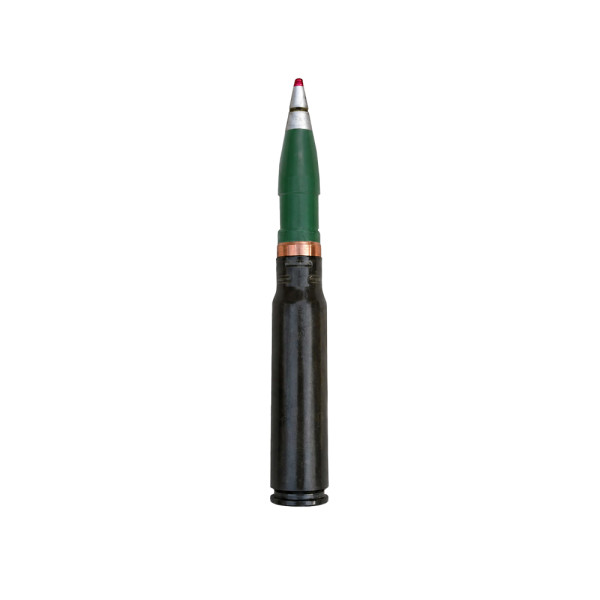

30x165 mm Round HE-T with High-Explosive Tracer Projectile

Overview

The Rounds are used for defense against anti-ship missiles and other precision guided weapons, as well as against fixed or rotary wing aircraft, ships and other small craft, coastal targets and floating mines.

The Rounds are compatible with automatic naval weapon syste AK-306, AK-630 and AK-630M

Packing
18 Rounds in one airtight metal box, three metal boxes (54 pcs. totally) in a wooden case
Wooden case dimensions, mm875x398x206
Gross weight, kg63
Volume, m30.072
Specifications
HE-T
PurposeDefense against anti-ship missiles and other precision guided weapons, as well as against fixed or rotary wing aircraft, ships and other small crafts, coastal targets and floating mines.
Weapon systemsАutomatic Naval Weapon Systems AK-306, AK-630 and AK-630M
Caliber, mm30x165
Projectile typeHigh-Explosive  with Tracer
Round length, mmfrom 288 to 292
Round weight, kg0.835 approx.
Projectile weight, kg0.385 approx.
Explosive filling typeA-IX-2
Explosive filling weight, kg0.0115
Fuze typeAF32-point detonating with delay action and distant arming
Fuze arming distance, mfrom 20 to 100
Average muzzle velocity,  m/s890 ± 15
Average max Pressure at 15°C Pmaxaver, Mpanot more than 318.7
Propellant type6/7fl
Tracer burning time, snot less than 9
Case materialSteel
Electric primer cartridgeEKV-30M
Operational temperature range, °Cfrom minus 50 to 50
CLASS OF EXPLOSION HAZARD1.1E; UN 0006
* Point detonating with delay action and distant arming.
