30x165 mm ROUNDS FOR AUTOMATIC NAVAL WEAPON SYSTEMS AK-306, AK-630 AND AK-630M

TP-T

TP-T

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

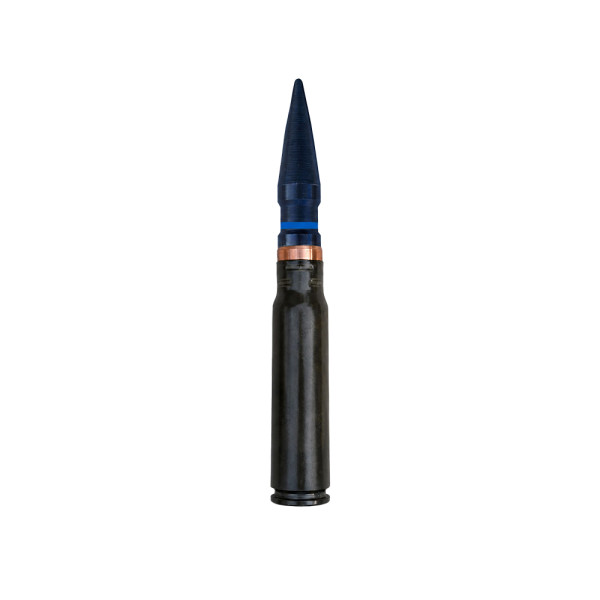

30x165 mm Round  with TP-T (Target-Practice Tracer) Projectile

Overview

The Rounds are used for defense against anti-ship missiles and other precision guided weapons, as well as against fixed or rotary wing aircraft, ships and other small craft, coastal targets and floating mines.

The Rounds are compatible with automatic naval weapon syste AK-306, AK-630 and AK-630M


Packing
18 Rounds in one airtight metal box, three metal boxes (54 pcs. totally) in a wooden case
Wooden case dimensions, mm875x398x206
Gross weight, kg63
Volume, m30.072
Specifications
TP-T
PurposeTarget Practice
Weapon systemsАutomatic Naval Weapon Systems AK-306, AK-630 and AK-630M
Caliber, mm30x165
Round length, mmfrom 288 to 292
Round weight, kg0.835 approx.
Projectile weight, kg0.385 approx.
Fuze typeBallistic plug
Average muzzle velocity,  m/s890 ± 15
Average max Pressure at 15°C Pmaxaver, MPanot more than 318.7
Propellant type6/7fl
Case materialSteel
Tracer burning time, snot less than 9
Electric primer cartridgeEKV-30M
Operational temperature range, °Cfrom minus 50 to 50
CLASS OF EXPLOSION HAZARD1.2C; UN 0328
* Point detonating with delay action and distant arming.
