40 mm Rounds Low Velocity for grenade launchers ARSENAL UBGL family, GP-25 and GP-30,GP-34 types.

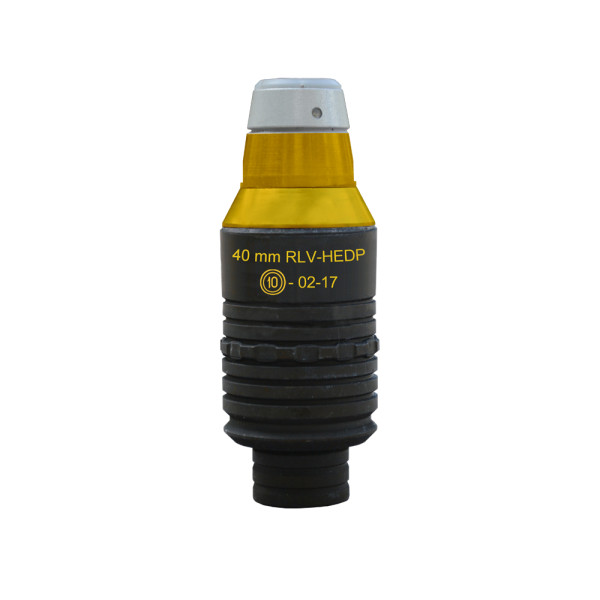

40 mm RLV-HEDP

40 mm RLV-HEDP

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

40 mm Round RLV-HEDP with High-Explosive Dual Purpose Grenade

NSN: 1310-50-001-5961



The Round RLV-HEDP is intended to destroy enemy manpower in the open, in transport means and light-armoured materials, as well as in long-term emplacements, long-term camouflaged emplacements, bunkers, dugouts and buildings.

Overview

The Rounds are compatible with:

 - ARSENAL UBGL, UBGL-1, GP-25 and GP-30 Underbarrel Grenade launchers mounted on ARSENAL Assault Rifles AR-M1, AR-M1F, AR-M7F, AR-M9, AR-M9F, etc.;

- AK-74, AKS-74, AKM, AKMS, AK 101, AK 103;

Packing
3 metal airtight boxes (34 pcs. in each box), placed in a wooden case (102 pcs. totally)
Wooden case dimensions, mm875x398x206
Case weight, kg45
Case volume, m30.072
Specifications
RLV-HEF
TypeLow velocity, High-Explosive Dual Purpose
Calibre, mm40
Overall length, mm107 max
Weight of the round, kg0.275 max
Max firing range, m400
Muzzle velocity, m/s76
Explosive fillingA-IX-1 (RDX)
PropellantP-200
Primer typeKVM-3
Fuze typeAF413 - point detonation, time and super quick with check action and self-destruction
Arming distance, mfrom 10 to 40
Self-destruction time, sfrom 14 to 19
Radius of defeat, mnot less than 6
Armour penetration50 mm armour plate
Operation temperature degrees, °Cfrom minus 50 to 50
CLASS OF EXPLOSION HAZARD:1.1E; UN 0006
