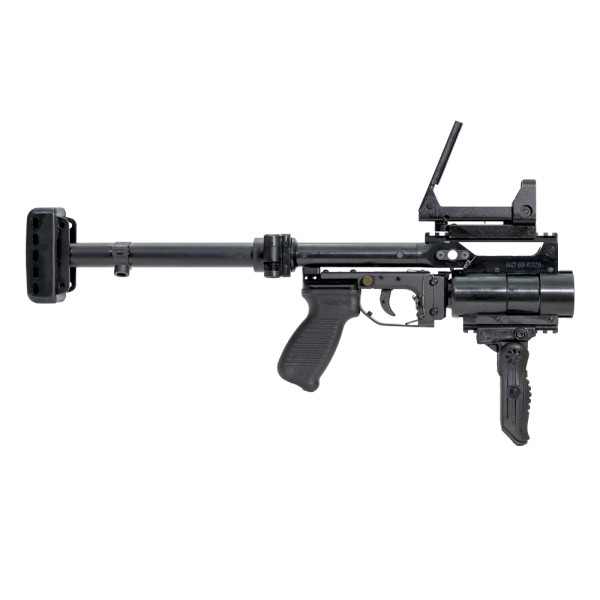

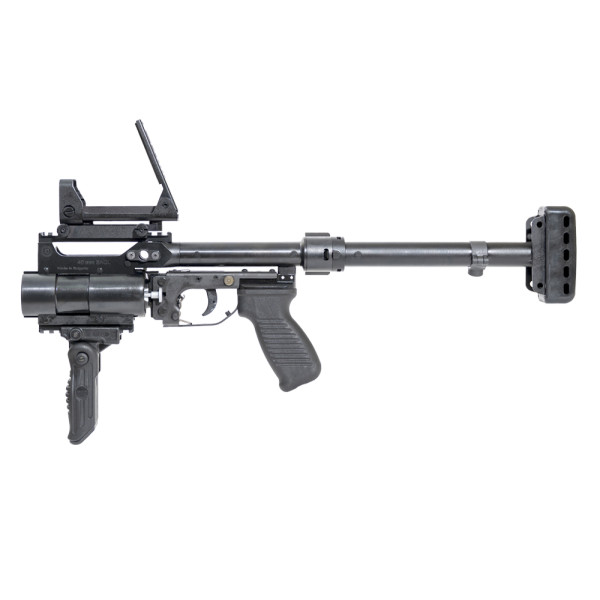

40 mm ARSENAL Stand-alone Grenade Launcher SAGL

NSN: 1010-50-001-8350

Overview

40 mm ARSENAL Stand-alone Grenade Launcher SAGL is a single shot, powerful close support weapon, intended for use against single and area targets at distance up to 400 m.

A Rail MIL-STD 1913 (Picatinny) is integrated on every Launcher (at the 12 o'clock position) for attachment of additional accessories.



Main Features:

40 mm SAGL characterizes with:

- Chromium plated barrel bore, which enlarges the life of the weapon;

- The metal surface finish ensures the corrosion resistance of the weapon, and makes the Launcher suitable for using in different climatic conditions – rain, snow, salt water and high temperatures;

- Easy cleaning and maintenance;

- The Sight is mechanical, frame type, taking into account the derivation of the grenade. In the marching position, the Sight is folded.

This Launcher enables higher practical rate of fire, in comparison with the Grenade Launchers intended for firing case grenades, due to its muzzle loading, and a trigger-firing mechanism of self-cocking type.

ACCESSORIES
Bag for launcher, pc1
Bag for 12 rounds, pc1
Sling, pc1
Box with Accessories (Drift and Screwdriver)1 set
Cleaning rod, pc1
Brush, pc1
Oil can, pc1
Packing
Ten (10) SAGL Launchers, preserved with gun oil, and their accessories are packed in a wooden case, as follows
Grenade launchers packed in a wooden case, pcs.10
Bag for Launcher, pcs.                 10
Bag for 12 Rounds, pcs.               10
Sling, pcs10
Box with Accessories (Drift and Screwdriver), set10
Cleaning rod, pcs10
Brush, pcs10
Oil can, pcs
Wooden case dimensions, mm1380 x 530 x 387
Gross weight of wooden case, kg79
Volume of the wooden case, m30.28
Specifications
40 mm SAGL
Calibre, mm40
AmmunitionRLV-HEF, RLV-HEFJ, RLV-TB, RLV-AD, RLV-P, RLV-SMK-3, RLV-ILL-WS, RLV-ILL-GS, RLV-ILL-RS, RLV-ILL-YS, RLV-S&F, RLV-CS-1, etc. and all caseless rounds for GP-25
Weight with mechanical sight, kg, max3.7
Weight without mechanical sight, kg, max3.4
Length560
Width, max65
Height in combat position, max323
Height in marching position, max217
Sight radius, mm93
Muzzle velocity, m/s76
Rate of fire, rounds/minfrom 5 to 6
Max firing range, mup to 400
Effective range at area targets, mup to 350
Effective range at point targets, mup to 150
System life, rounds400
Operational temperature, °Cfrom minus 40 to 50
Storage temperature, °Cfrom minus 50 to 50
