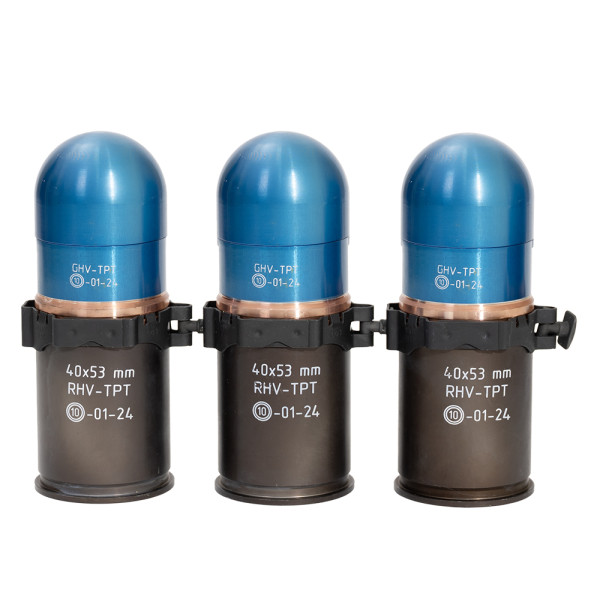

40x53 mm Round RHV- TPT with Training Practice Grenade with Tracer

NSN: 40x53 mm RHV-TPT

Designation

The 40x53 mm Round RHV-TPT is intended for training of army units, ensuring simulation of a real combat firing.

Compatibility

The rounds are designed to be fired from Automatic Grenade Launchers, as follows: GD/SACO Mk19, HK GMG, SB LAG40, and other Automatic Grenade Launchers, compatible with 40x53 mm High velocity Rounds, meeting NATO requirements.

Packing
32-round loaded belt (links M16A2 type) is packed in a metal box PA120 (32 Rounds totally)
Metal box dimensions, mm:476x162x264
Metal box GROSS weight, kg:19
Metal box volume, m3:0.02
TECHNICAL CHARACTERISTICS
Round
RHV-TPT
Type of the RoundHigh Velocity, Practice with Tracer
Caliber, mm40x53
Overall length, mm112 max
Weight of Round, kg0.355 approx.
Linked, link type32-round capacity metal belt, comprised of M16A2 disintegrating links
Grenade
Type of GrenadePractice with Tracer
Tracer burning time, sNot less than 9
Colour of tracerred
Propelling Charge
PrimerPercussion
Cartridge case materialAluminum alloy
Propellant typeNC Single base
BALLISTIC CHARACTERISTICS
Muzzle velocity, m/s (measured at 24 m from muzzle)237±10
Max Firing Range, m2050
Operation temperature range, °Cfrom minus 54 to 52
