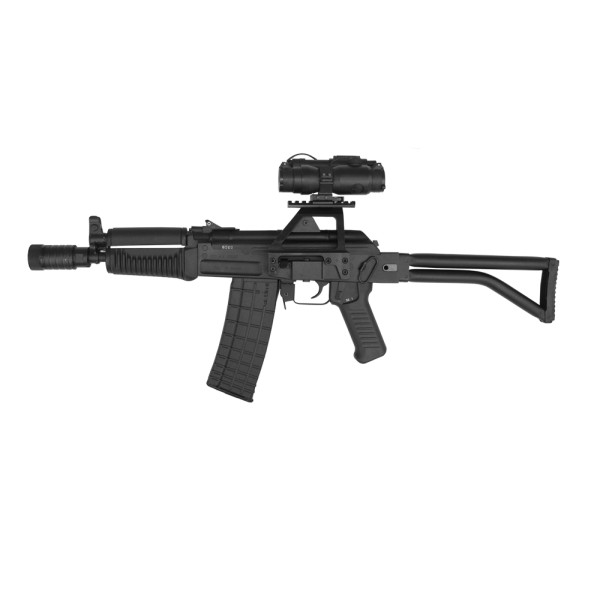

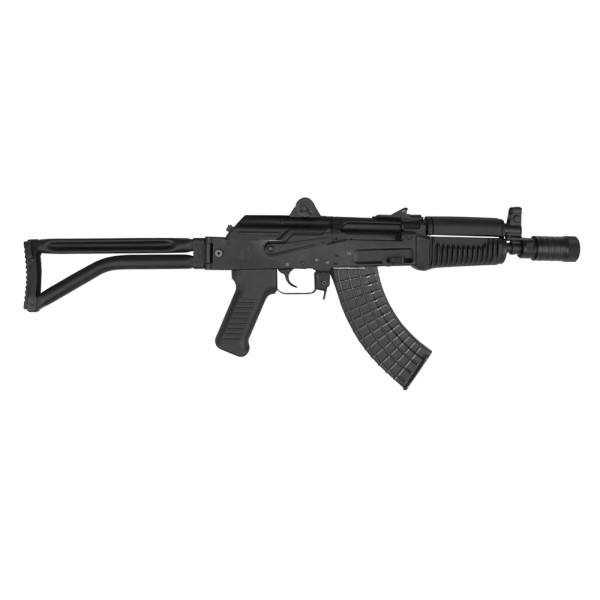

5.56x45 mm and 7.62x39 mm AR-M14SF

Main Features:

Receiver, made from hot die forged solid blank followed by milling operations;
Chromium plated Barrel, manufactured by the method of cold radial forging, providing bigger hardness and better structure of the material;
Arcuate staggered Magazine, manufactured from glass fiber reinforced polycaproamide;
Lower hand guard, Upper hand guard, and Pistol grip, made from glass fiber reinforced polycaproamide;
Upper hand guard, equipped with one Picatinny rail (at the 12 o'clock position);
Tritium Self-illuminated Night Sight (3-dot sight system) - extra, used for quick target acquisition at low-light conditions;
Rail on the receiver, on which via a Sight Carrier with a Picatinny rail, different kinds of Sighting Devices can be attached;
Telescopic plastic butt with several stages of extraction;
Additional left fire mode Selector Lever, for rapid fire mode changing and for convenience of left-handed shooters.

Optional Extras (Paid Separately):

Luminous spots on the sights;
20/30-round translucent polymer magazine (for 5.56x45 mm);
Black polymer magazines for 5, 10 and 40 cartridges (for 7.62x39 mm);
Front sight adjusting kit (in the ratio 1:10);
Set for magazines coupling;
Blank fire attachment;
Silencer.

ACCESSORIES
Cleaning rod
Sling
Box with accessories (brush, drift, slush brush, screwdriver)
Magazine 4 pcs
5.56x45 mm
7.62x39 mm
Bag for magazines
Oil can
Sight carrier with rail MIL-STD 1913 (Picatinny)
Wide Range Electronic Optical
Red Dot Sight MK-6

ACCESSORIES

Cleaning rod

Sling

Box with accessories (brush, drift, slush brush, screwdriver)

Magazine 4 pcs

5.56x45 mm

7.62x39 mm

Bag for magazines

Oil can

Sight carrier with rail MIL-STD 1913 (Picatinny)

Wide Range Electronic Optical

Red Dot Sight MK-6

Packing
Number of rifles in one wooden case	10
Case dimensions, mm	1211x572x356
Gross Weight of the wooden case, kg	84
Volume of the wooden case, m³	0.25

Packing

Number of rifles in one wooden case

Case dimensions, mm

1211x572x356

Gross Weight of the wooden case, kg

Volume of the wooden case, m³

0.25

Specifications	AR-M14SF	AR-M14SF
Calibre, mm	5.56	7.62
Cartridge, mm	5.56 x 45	7.62 x 39
Fire mode	single, automatic	single, automatic
Rate of fire, rounds/min	600	600
Practical rate, rounds/min automatic fire	up to 100	up to 100
Practical rate, rounds/min single fire	up to 40	up to 40
Muzzle velocity, m/s
● Bullet type M 193	750	-
● Bullet type SS 109	710	-
Sighting range, m	500	500
Maximum firing range, m	1100	1100
Effective firing range, m	300	250
Magazine capacity, rounds	30	30
Barrel length, mm	215	215
Sight radius, mm	300	300
Overall length, mm - with extended butt
● With extended butt	760	760
● With folded butt in traveling position	520	520
Weight, kg
● Without magazine	3.3	3.3
● Loaded magazine	0.58	0.72
System life, rounds	15 000	15 000
Principle of function	gas operated	gas operated

Specifications

AR-M14SF

Calibre, mm

5.56

7.62

Cartridge, mm

5.56 x 45

7.62 x 39

Fire mode

single, automatic

Rate of fire, rounds/min

600

Practical rate, rounds/min automatic fire

up to 100

Practical rate, rounds/min single fire

up to 40

Muzzle velocity, m/s

● Bullet type M 193

750

● Bullet type SS 109

710

Sighting range, m

500

Maximum firing range, m

1100

Effective firing range, m

300

250

Magazine capacity, rounds

Barrel length, mm

215

Sight radius, mm

300

Overall length, mm - with extended butt

● With extended butt

760

● With folded butt in traveling position

520

Weight, kg

● Without magazine

3.3

● Loaded magazine

0.58

0.72

System life, rounds

15 000

Principle of function

gas operated

5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 215 mm)

5.56x45 mm and 7.62x39 mm AR-M14SF

Overview

Features

Specifications

Accessories

Packing

Main Features:
