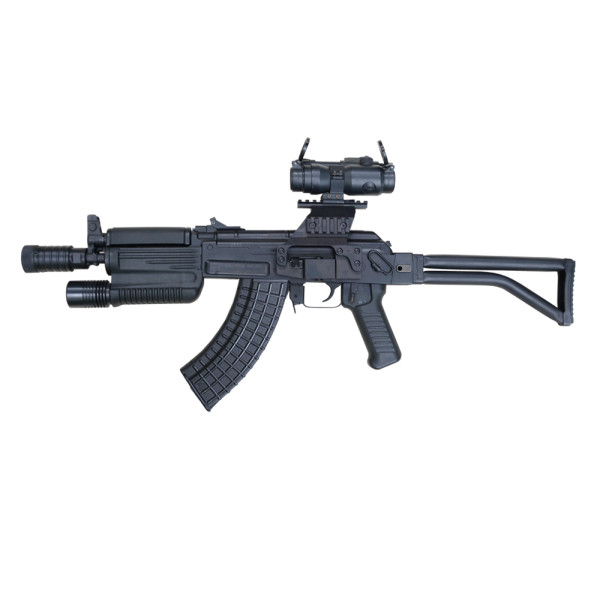

5.56x45 mm and 7.62x39 mm AR-M4SF

Main Features:

Receiver, made from hot die forged solid blank followed by milling operations;
Chromium plated Barrel, manufactured by the method of cold radial forging, providing bigger hardness and better structure of the material;
Arcuate staggered Magazine, manufactured from glass fiber reinforced polycaproamide;
Lower hand guard, Upper hand guard, and Pistol grip, made from glass fiber reinforced polycaproamide;
Tritium Self-illuminated Night Sight (3-dot sight system), used for quick target acquisition at low-light conditions;
Built-in Tactical Flashlight for target lighting;
Rail on the receiver, on which via a Sight Carrier with a Picatinny rail, different kinds of Sighting Devices can be attached;
Special Sight Carrier, enabling the attachment of Passive Collimator Sight MK-30;
Shortened barrel and Right-side folding metal butt;
Additional left fire mode Selector Lever, for quick fire mode changing when the butt is folded, and for convenience of left-handed shooters;
Commando type Sling, suitable for quick opening of fire at marching position.

Optional Extras (Paid Separately):

20/30 round translucent magazine (for 5.56x45 mm);
Black polymer magazine for 5, 10 and 40 cartridges (for 7.62x39 mm);
Front sight adjusting kit (in the ratio 1:10);
Set for magazines coupling;
Blank fire attachment;
Collimator sight;
Silencer

ACCESSORIES
Cleaning rod
Sling Commando
Box with accessories(brush, drift, slush brush (cal. 5.56)/ scourer (cal. 7.62), screwdriver)
Magazine 4 pcs
5.56x45 mm
7.62x39 mm
Oil can
Bag

ACCESSORIES

Cleaning rod

Sling Commando

Box with accessories(brush, drift, slush brush (cal. 5.56)/ scourer (cal. 7.62), screwdriver)

Magazine 4 pcs

5.56x45 mm

7.62x39 mm

Oil can

Bag

Packing
Number of rifles in one wooden case	10
Case dimensions, mm	1211x572x356
Gross Weight of the wooden case, kg	90 (with MK-30)
Volume of the wooden case, m³	0.25

Packing

Number of rifles in one wooden case

Case dimensions, mm

1211x572x356

Gross Weight of the wooden case, kg

90 (with MK-30)

Volume of the wooden case, m³

0.25

Specifications	AR-M4SF	AR-M4SF
Calibre, mm	5.56	7.62
Cartridge, mm	5.56 x 45	7.62 x 39
Fire mode	single, automatic	single, automatic
Rate of fire, rounds/min	600	600
Practical rate, rounds/min
● Automatic fire	up to 100	up to 100
● Single fire	up to 40	up to 40
Muzzle velocity, m/s	600
Muzzle velocity, m/s
● Bullet type M 193	750	-
● Bullet type SS 109	710	-
Sighting range, m	500	500
Maximum firing range, m	1100	1100
Effective firing range, m	300	250
Magazine capacity, rounds	30	30
Barrel length, mm	215	215
Sight radius, mm	300	300
Overall length, mm
● With extended butt	760	760
● With folded butt in travelling position	520	520
Weight, kg
● Rifle without magazine and collimator sight	3.5	3.5
● 30-round loaded magazine	0.58	0.72
System life, rounds	15 000	15 000
Principle of function	gas operated	gas operated

Specifications

AR-M4SF

Calibre, mm

5.56

7.62

Cartridge, mm

5.56 x 45

7.62 x 39

Fire mode

single, automatic

Rate of fire, rounds/min

600

Practical rate, rounds/min

● Automatic fire

up to 100

● Single fire

up to 40

Muzzle velocity, m/s

600

Muzzle velocity, m/s

● Bullet type M 193

750

● Bullet type SS 109

710

Sighting range, m

500

Maximum firing range, m

1100

Effective firing range, m

300

250

Magazine capacity, rounds

Barrel length, mm

215

Sight radius, mm

300

Overall length, mm

● With extended butt

760

● With folded butt in travelling position

520

Weight, kg

● Rifle without magazine and collimator sight

3.5

● 30-round loaded magazine

0.58

0.72

System life, rounds

15 000

Principle of function

gas operated

5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 215 mm)

5.56x45 mm and 7.62x39 mm AR-M4SF

Overview

Features

Specifications

Accessories

Packing

Main Features:
