Home / Military & Law Enforcement / Weapons / Assault Rifles / 5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 215 mm) / 5.56x45 mm and 7.62x39 mm AR-M7ST

5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 215 mm)

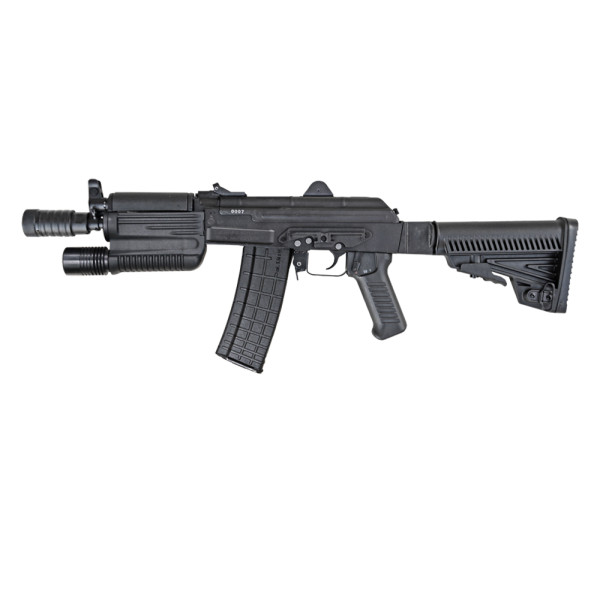

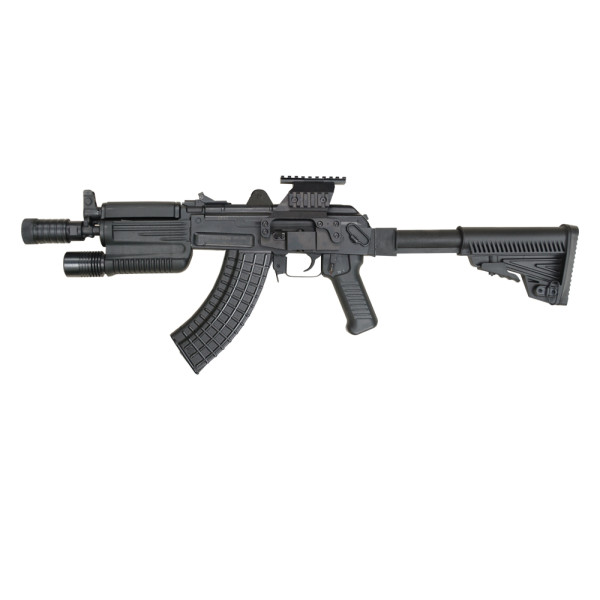

5.56x45 mm and 7.62x39 mm AR-M7ST

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Packing

5.56x45 mm ARSENAL Assault Rifles AR-M7ST with short barrel and telescopic butt
NSN: 1005-50-001-3020

7.62x39 mm ARSENAL Assault Rifles AR-M7ST with short barrel and telescopic butt
NSN: 1005-50-001-4216

The 5.56 mm AR-M7ST and 7.62 mm AR-M7ST are highly effective automatic weapons, used as armament of combat crews, reconnoitring detachments, special antiterrorist and police troops, and security services.

Main Features:

Receiver, made from hot die forged solid blank followed by milling operations
Chromium plated Barrel, manufactured by the method of cold radial forging, providing bigger hardness and better structure of the material
Arcuate staggered Magazine, manufactured from glass fiber reinforced polycaproamide.
Lower hand guard, Upper hand guard, butt, and Pistol grip, made from glass fiber reinforced polycaproamide.
Tritium Self-illuminated Night Sight(3-dot sight system), used for quick target acquisition at low-light conditions.
Rail on the receiver, on which via a Sight Carrier with a Picatinny rail, different kinds of Sighting devices can be attached.
Telescopic plastic butt with several stages of extraction.
Additional left fire mode Selector Lever, for rapid fire mode changing and for convenience of left-handed shooters.

Optional Extras (Paid Separately):

luminous spots on the sights;
20/30-round translucent polymer magazine (for 5.56x45 mm);
Black polymer magazines for 5, 10 and 40 cartridges (for 7.62x39 mm);
Front sight adjusting kit (in the ratio 1:10);
Set for magazines coupling;
Blank fire attachment;
Silencer.

ACCESSORIES
Cleaning rod
Sling
Box with accessories (brush, drift, slush brush, screwdriver)
Magazine - 4 pcs.
5.56x45 mm
7.62x39 mm
Bag for magazines
Oil can
Sight carrier with rail MIL-STD 1913 (Picatinny)
Wide Range Electronic Optical
Red Dot Sight MK-6

Packing
Number of rifles in one wooden case	10
Case dimensions, mm	1270x572x387
Gross Weight of the wooden case, kg	88
Volume of the wooden case, m³	0.25

Specifications	AR-M7ST	AR-M7ST
Calibre, mm	5.56	7.62
Cartridge, mm	5.56x45	7.62x39
Fire mode	single and automatic	single and automatic
Rate of fire, rounds/min	600	600
Practical rate, rounds/min
● Automatic fire	up to 100	up to 100
● Single fire	up to 40	up to 40
Muzzle velocity, m/s
● Bullet type M 193	750	-
● Bullet type SS 109	710	-
Sighting range, m	500	500
Maximum firing range, m	1100	1100
Effective firing range, m	300	300
Magazine capacity, rounds	30	30
Barrel length, mm	215	215
Sight radius, mm	240	240
Overall length, mm
● With extended butt	845	845
● With retracted butt in travelling position	745	745
Weight, kg
● Rifle without magazine and MK-6	3.5	3.5
● Loaded magazine	0.58	0.72
System life, rounds	15 000	15 000
Principle of function	gas operated	gas operated
