5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 215 mm)

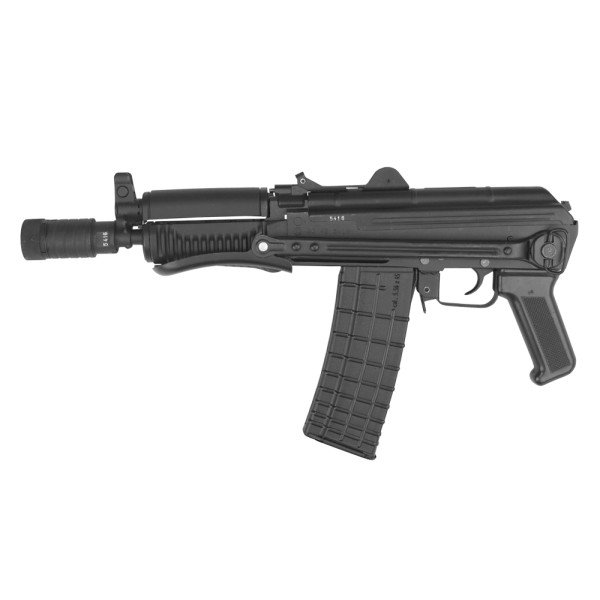

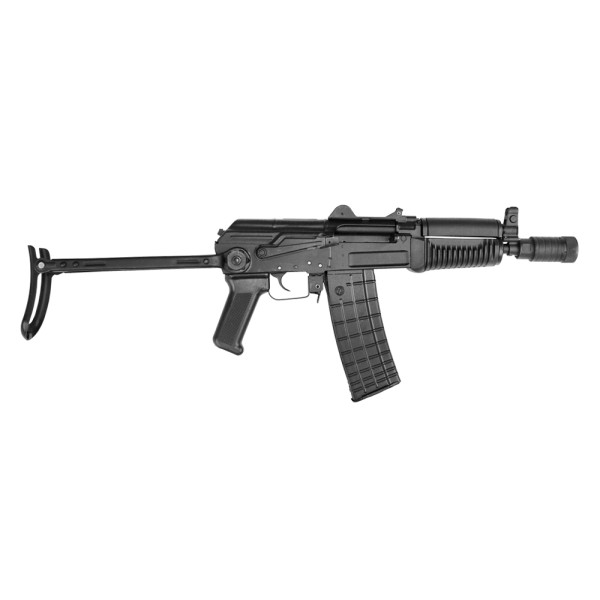

5.56x45 mm and 7.62x39 mm AR-SF

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Packing

5.56x45 mm ARSENAL Assault Rifle AR-SF with short barrel and folding butt

NSN: 1005-50-000-1045

7.62x39 mm ARSENAL Assault Rifles AR-SF with short barrel and folding butt

NSN: 1005-50-000-0212

The 5.56 mm AR-SF and 7.62 mm AR-SF are highly effective automatic weapons, used as armament of combat crews, reconnoitring detachments, special antiterrorist and police troops, and security services.

Main Features:

Receiver, made from hot die forged solid blank followed by milling operations;
Chromium plated Barrel, manufactured by the method of cold radial forging, providing bigger hardness and better structure of the material;
Arcuate staggered Magazine, manufactured from glass fiber reinforced polycaproamide;
Lower hand guard, Upper hand guard, and Pistol grip, made from glass fiber reinforced polycaproamide;
Metal down-folding butt.

Optional Extras (Paid Separately):

20/30 round translucent magazine (for 5.56x45 mm);
Black polymer magazines for 5, 10 and 40 cartridges (for 7.62x39 mm);
Front sight adjusting kit (in the ratio 1:10);
Set for magazines coupling;
Blank fire attachment;
Silencer.

ACCESSORIES
Cleaning rod
Sling
Box with accessories (brush, drift, slush brush (cal. 5.56)/ scourer (cal. 7.62), screwdriver)
Bag for magazines
Oil can
Magazine 4 pcs
5.56x45 mm
7.62x39 mm

Packing
Number of rifles in one wooden case	10
Case dimensions, mm	1211x572x356
Gross Weight of the wooden case, kg	80
Volume of the wooden case, m³	0.25

SPECIFICATIONS	AR-SF	AR-SF
Calibre, mm	5.56	7.62
Cartridge, mm	5.56 x 45	7.62 x 39
Fire mode	single, automatic	single, automatic
Rate of fire, rounds/min	600	600
Practical rate, rounds/min
● Automatic fire	up to 100	up to 100
● Single fire	up to 40	up to 40
Muzzle velocity, m/s
● Bullet type M 193	790	-
● Bullet type SS 109	730	-
Sighting range, m	500	500
Maximum firing range, m	1100	1100
Effective firing range, m	300	250
Magazine capacity, rounds	30	30
Barrel length, mm	215	215
Sight radius, mm	240	235
Overall length, mm
● With extended butt	750	750
● With folded butt in travelling position	500	500
Weight, kg
● Rifle without magazine	3.1	3.1
● Loaded magazine	0.58	0.72
System life, rounds	15000	15000
Principle of function	gas operated	gas operated
