5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 215 mm)

7.62x39 mm AR-M5SF

7.62x39 mm AR-M5SF

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

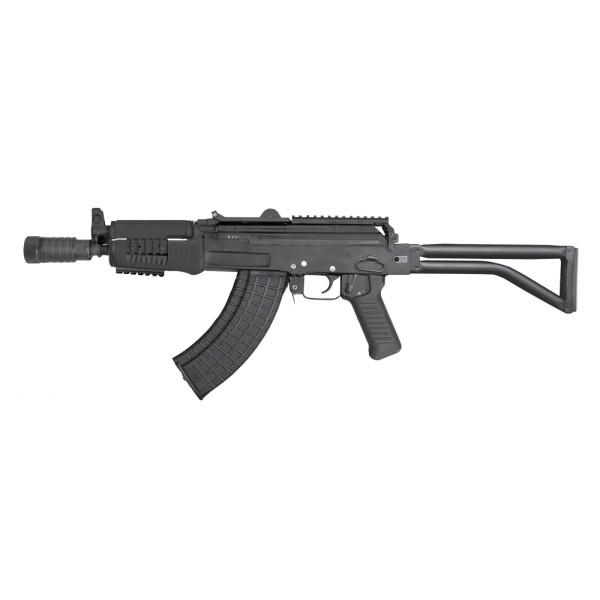

7.62x39 mm ARSENAL Assault Rifles AR-M5SF

with short barrel and folding butt

The 7.62x39 mm AR-M5SF is a highly effective automatic weapons designed for the antipersonnel role at range up to 500 m.

The weapon can be used for the armament of heavy combat equipment crews, reconnoitring detachments, special antiterrorist and police troops and security services. The system operated on propellant gasses diverted through a vent in the barrel.

The barrel chamber is closed by turn of the bolt and engaging the firing stops in the receiver.

The receiver is made from hot die forged solid blank followed by milling operations.

The weapon is fed from a 30-round arcuated staggered magazine, manufactured from glass fiber reinforced polycaproamide.

Main Features:

The lower hand guard and the upper hand guard, and pistol grip are made from glass fiber reinforced polycaproamide.



A right side folding metal butt and a shortened barrel are fitted to the rifle so the constriction generally features a basic individual weapon of assault and special task group.



For quick target acquisition at low-light conditions can be used Tritium Self-illuminated Night Sight (3-dot sight system).



Ambidextrous Safety Lever is available (an additional left fire mode Selector Lever, for rapid fire mode changing and for convenience of left-handed shooters).

Above the receiver cover of the AR-M5SF there is a Picatinny rail, MIL-STD (1913), on which different kinds of Sighting Devices can be attached to the Rifle.



The lower hand guard is equipped with Rails MIL-STD 1913 (Picatinny) on three sides (at the 3, 6 and 9 o'clock positions), which make possible the attachment of Flash Light, Lazer Aim Indicator, Front Hand Grip, Bipod, etc.



The weapon fires 7.62 mm cartridges (7.62x39 mm).

Optional Extras (Paid Separately):
  • black polymer magazines for 40 cartridges;
  • front sight adjusting kit (in the ratio 1:10);
  • magazines coupling device;
  • blank fire attachment;
  • silencer.
ACCESSORIES
Cleaning rod
Box with accessories (brush, drift, scourer, screwdriver)
Bag for magazines
Oil can
Sling
Magazine 4 pcs.
Packing
10 rifles and their accessories are packed in a wooden case
Wooden case dimensions, mm1270 x 572 x 387
Wooden case gross weight, kg85
Wooden case volume, m30.28
TACTICAL CHARACTERISTICS
Calibre, mm7.62
Cartridge, mm7.62x39
Fire modeSingle, automatic
Rate of fire, rounds/min600
Practical rate of fire
● Automatic fire, rounds/min100
● Single fire, rounds/min40
Muzzle velocity, m/s600
Sighting range, m500
Max. firing range, m1100
Effective firing range, m250
Magazine capacity, rounds30
Barrel length, mm215
Sight radius, mm235
Length with extended butt, mm765
Length with retracted butt in travelling position, mm520
Weight without magazine, kg3.3
Weight of loaded magazine, kg0.72
System life, rounds15 000
Principle of functiongas operated automatic rifle
