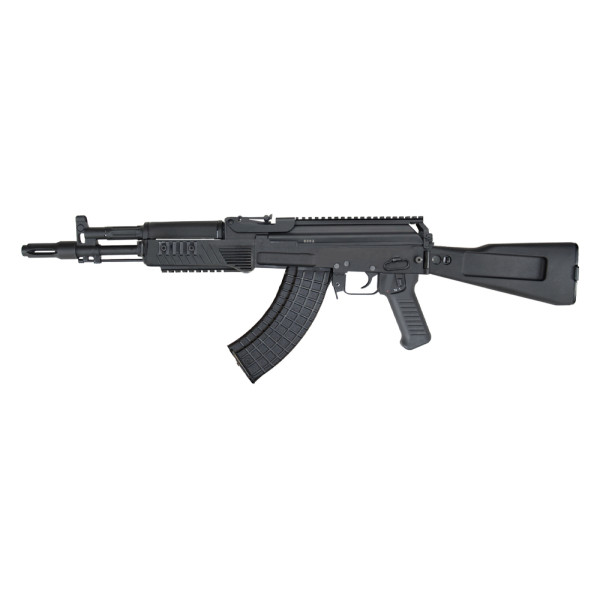

7.62x39 mm ARSENAL Assault Rifle AR-M527F small-size with folding butt
NSN: 1005-50-001-4214
The 7.62x39 mm AR-M527F is a highly effective automatic weapon designed for the antipersonnel role at range up to 500m.
The system operates on propellant gasses diverted through a vent in the barrel.
The barrel chamber is closed by turn of the bolt and engaging the firing stops in the receiver.
Overview
The receiver is made from hot die forged solid blank followed by milling operations.
The weapon is fed from a 30-round arcuated staggered magazine, manufactured from glass fiber reinforced polycaproamide.
The trigger-firing mechanism has a hammer, which is activated by firing spring. This mechanism has a safety device-safety for setting from safe position to single or automatic fire mode, as well as contrariwise. The safety simultaneously serves as a safety lever preventing accidental shoots. It is located on the right hand side of the receiver and is formed as a long pivoted lever. When set in the utmost upper position (safe) the trigger is blocked. In this position the safety serves two other functions:
- prevents contaminating of the receiver through the bolt carrier handle slot in the receiver cover;
- prevents from reloading the barrel chamber.
The lower hand guard and the upper hand guard and pistol grip are made from glass fiber reinforced polycaproamide.
The lower hand guard is equipped with Rails MIL-STD 1913 (Picatinny) on three sides (at the 3, 6 and 9 o'clock positions), which make possible the attachment of Flash Light, Laser Aim Indicator, Front Hand Grip, Bipod, etc.
Main Features:
Above the receiver cover of the AR-M527F there is a Picatinny rail, MIL-STD (1913), on which different kinds of Sighting Devices can be attached to the Rifle.
7.62 mm AR-M527F has left-side folding plastic butt.
For quick target acquisition in low-light conditions Tritium Self-illuminated Night Sight (3-dot sight system) can be used.
Ambidextrous Safety Lever is available (an additional left fire mode Selector Lever, for rapid fire mode changing and for convenience of left-handed shooters).
The Assault Rifle design allows the attachment of 40x46mm UBGL-M6, UBGL-M8 and 40 mm UBGL-1 ARSENAL Underbarrel Grenade Launchers and firing with them.
Optional Extras (Paid Separately):
- black polymer magazines for 40 cartridges;
- front sight adjusting kit (in the ratio 1:10);
- blank fire attachment;
- magazines coupling device;
- knife scissors;
- front hand grip;
- silencer
|
|---|
| Cleaning rod & Cleaning rod extender |
| Multi-purpose carrying sling |
| Box with accessories (brush, drift, scourer, screwdriver) |
| 30 rds Magazine - 4 pcs |
| Bag for 4 Magazines |
| Oil can |
|
|---|
| 10 assault rifles in a wooden case |
| Case dimensions, mm | 1380x572x387 |
| Gross Weight of the wooden case, kg | 94 |
| Volume of the wooden case, m3 | 0.31 |
|
|---|
| Calibre, mm | 7.62 |
| Cartridge, mm | 7.62x39 |
| Fire mode | Single, automatic |
| Rate of fire, rounds/min | 600 |
Practical rate of fire |
| ● Automatic fire, rounds/min | 100 |
| ● Single fire, rounds/min | 40 |
| Muzzle velocity, m/s | 650 |
| Sighting range, m | up to 500 |
| Max. firing range, m | 1100 |
| Effective firing range, m | 350 |
| Magazine capacity, rounds | 30 |
| Barrel length, mm | 320 |
| Sight radius, mm | 278 |
Length, mm |
| ● With plastic extended butt | 863 |
| ● With folded butt in travelling position | 623 |
Weight |
| ● Rifle without magazine, kg | 4.0 |
| ● Loaded magazine, kg | 0.72 |
| System life, rounds | 15 000 |
| Principle of function | gas operated automatic rifle |
