Barrel length, mm
215/215

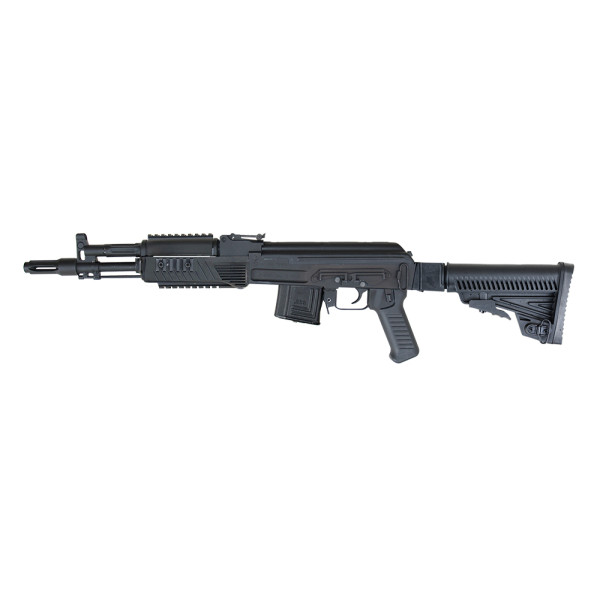

5.56x45 mm and 7.62x39 mm ARSENAL Semi-automatic Hunting Rifle SAR-M2T small-size with with telescopic plastic butt
The 5.56 mm and 7.62 mm SAR-M2T is a highly effective semi-automatic weapon designed for the antipersonnel role at range of 500m. The system operates on propellant gasses diverted through a vent in the barrel.
The barrel chamber is closed by turn of the bolt and engaging the firing stops in the receiver.
The receiver is made from hot die forged solid blank followed by milling operations.
The weapon is fed from a 5-round arcuated staggered magazine, manufactured from glass fiber reinforced polycaproamide.
Overview
The hammer-trigger mechanism has a hammer, which is activated by firing spring. This mechanism has a safety device-safety for setting from single to automatic fire mode as well as contrariwise. The safety simultaneously serves as well as a safety level preventing the accidental shoots. It is located on the right hand side of the receiver and is formed as a long pivoted lever. When set in the utmost upper position the trigger is blocked. In this position the safety serves two other functions:
- prevents contaminating of the receiver through the bolt carrier handle slot in the receiver cover;
- prevents from reloading the barrel chamber.
The butt, lower hand guard and the upper hand guard and pistol grip are made from glass fiber reinforced polycaproamide.
The lower hand guard is equipped with Rails MIL-STD 1913 (Picatinny) on three sides (at the 3, 6 and 9 o'clock positions), wich make possible the attachment of Flash Light, Lazer Aim Indicator, Front Hand Grip, Bipod, etc.
The upper hand guard is equipped with one Picatinny rail (at the 12 o'clock position), which make the attachment of Sighting Devices possible.
For quick target acquisition at low-light conditions can be used Tritium Self-illuminated Night Sight (3-dot sight system).
For rapid fire mode changing is available an additional left fire mode selector lever.
On the receiver of the SAR-M2T there is a riveted Rail, on which via a Sight Carrier with a Picatinny rail, different kinds of Sighting Devices can be attached to the Rifle.
Main Features:
The butt of SAR-M2T is telescopic plastic. The Butt is characterized by:
- Possibility of 3 stages of extraction;
- Side Picanny Rail – allows addition of fully adjustable cheek-rest (adjustable for height with thumb knob – 2.4 cm range; by moving horizontally along the Picatinny rail, allows proper eye relief of scoped rifles);
- Rubber non-slip butt pad with tapered angle, allows faster shouldering & increased comfort with body armor;
- Two ultrasonically welded metal quick release sling mount points;
- All can be easily fit to both left/right handed users.
Optional Extras (Paid Separately):
Extras (Paid Separately):
- luminous spots on the sights;
- front sight adjusting kit (in the ratio 1:10);
- set for magazines coupling;
- blank fire attachment;
- sight carrier with rails MIL-STD 1913 (Picatinny) on two sides (at the 9 and 12 o'clock positions);
- knife scissors;
- front hand grip.
|
|---|
| Cleaning rod |
| Sling |
| Box with accessories (brush, drift, slush brush, screwdriver) | |
| Magazine 1 pcs | |
| Oil can | |
|
|---|
| Number of rifles in one Cardboard box, pcs. | 1 | 1 |
| Box dimensions, mm | 1066x210x80 | 1066x210x80 |
| Gross Weight of the Box, kg | 4.72 | 4.72 |
| Volume of the Box, m3 | 0.0179 | 0.0179 |
| GROUP PACKING |
| Cardboard Box for 4 Individual Packings |
| Box dimensions, mm | 1075x445x168 | 1075x445x168 |
| Gross Weight of the Box, kg | 21.6 | 21.6 |
| Volume of the wooden case, m3 | 0.0804 | 0.0804 |
Specifications - SAR-M2FT |
|---|
| Calibre, mm | 5,56 | 7.62 |
| Cartridge, mm | 5.56 x 45 | 7.62x39 |
| Fire mode | single | single |
| Muzzle velocity, m/s | - | 650 |
Muzzle velocity, m/s |
| ● Bullet type M193 | 880 | - |
| ● Bullet type SS109 | 830 | - |
| Sighting range, m | up to 500 | up to 500 |
| Max. firing range, m | 1 100 | 1 100 |
| Effective firing range, m | 400 | 400 |
| Magazine capacity, rounds | 5 | 5 |
| Barrel length, mm | 320 | 320 |
| Sight radius, mm | 278 | 278 |
Length, mm |
| ● With metal extended butt | 940 | 940 |
| ● With folded butt in travelling position | 840 | 840 |
Weight |
| ● Rifle without magazine, kg | 3.55 | 3.55 |
| System life, rounds | 5 000 | 5 000 |
| Principle of function | gas operated | gas operated |
