Barrel length, mm
215/215

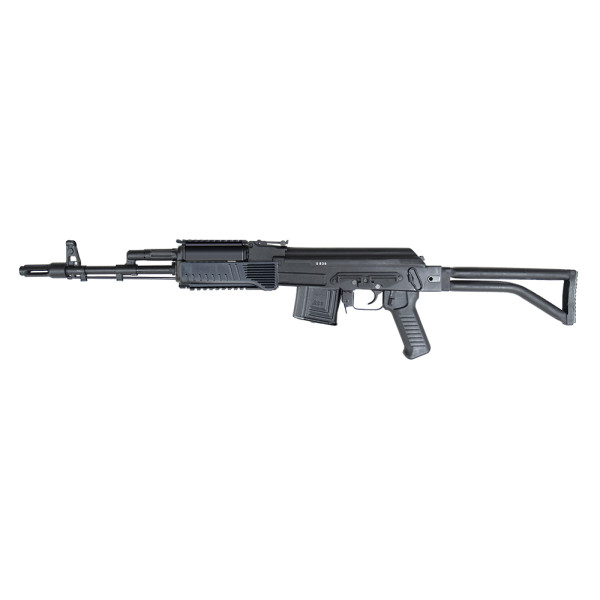

5.56x45 mm ARSENAL Semi-automatic Hunting Rifle SAR-M14F with folding metal butt
The 5.56 mm SAR-M14F belongs to the firearms whose action is based on the principle of conveying a part of the powder gases through a special port in the wall of the stationary barrel and their influence onto the bolt carrier.
The receiver is made from hot die forged solid blank followed by milling operations.
Overview
The barrel chamber is closed by turn of the bolt and engaging the firing stops in the receiver.
The weapon is fed from a 5-round arcuated staggered magazine, manufactured from glass fiber reinforced polycaproamide.
The sigh consists of sectors marked for shooting at a distance of up to 800 m.
The hammer-trigger mechanism has a hammer, which is activated by firing spring. This mechanism has a safety device-safety for setting from single to automatic fire mode as well as contrariwise. The safety simultaneously serves as well as a safety level preventing the accidental shoots. It is located on the right hand side of the receiver and is formed as a long pivoted lever. When set in the utmost upper position the trigger is blocked. In this position the safety serves two other functions:
- prevents contaminating of the receiver through the bolt carrier handle slot in the receiver cover;
- prevents from reloading the barrel chamber.
The lower hand guard and the upper hand guard and pistol grip are made from glass fiber reinforced polycaproamide.
The lower hand guard is equipped with Rails MIL-STD 1913 (Picatinny) on three sides (at the 3, 6 and 9 o'clock positions), wich make possible the attachment of Flash Light, Lazer Aim Indicator, Front Hand Grip, Bipod, etc.
The upper hand guard is equipped with one Picatinny rail (at the 12 o'clock position), which make the attachment of Sighting Devices possible.
5.56 mm SAR-M14F has right-side folding butt.
For rapid fire mode changing, for convenience left-hand shooters, as well as when the butt is folded, is available an additional left fire mode selector lever.
On the receiver of the SAR-M14F there is a riveted Rail, on which via a Sight Carrier with a Picatinny rail, different kinds of Sighting Devices can be attached to the Rifle.
For quick target acquisition at low-light conditions can be used Tritium Self-illuminated Night Sight (3-dot sight system).
Optional Extras (Paid Separately):
- luminous spots on the sights;
- front sight adjusting kit (in the ratio 1:10);
- set for magazines coupling;
- blank fire attachment;
- knife scissors;
- operation sling;
- 5-positions folding front hand grip;
- retractable bi-pod.
