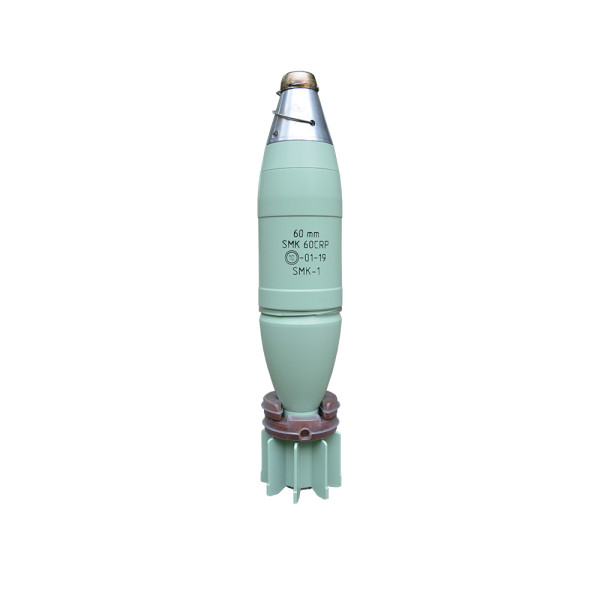

60 mm Mortar Bomb SMK 60CRP

NSN:1310-50-001-5719





The 60 mm Smoke Mortar Bomb SMK 60CRP is designed for marking objects, targets, creating a smoke screen in order to mask friendly units’ operations and is used for facilitation of the tactical deployment of friendly troops, as well as evading enemy fire. The smoke screen from the Bomb is also used for suppression of enemy surveillance and reconnaissance means, prevention from aimed fire.

Main Features:

Performance:

  • Immediate creation of dense smoke screen;
  • Bigger density of the smoke screen, compared to white phosphorous ammunition;
  • Provides igniting action.

This Mortar Bomb is fuzed with AF66 (Point detonating, super quick action, boresafe type, muzzle safety distance 40 m) fuze.

The 60 mm Smoke Mortar Bomb SMK 60CRP is intended to be used with any type of smooth bore 60 mm Mortars of NATO Standard – such as COMMANDO Mortar M60CMA, M60MA, M2 and M19, BRANDT model 35, Tampella, Thompson Houston – Hotchkiss – Brandt Commando, M-57, M6H and M6C Hirtenberger, Commando CX1-M Expal, etc.

BALLISTIC DATA
SMK 60CRP
Average Maximum Pressure, bar (piezo)250 (0+2)
Average Max Range, m2 177 (0+2)
Average Muzzle velocity, m/s186 (0+2)
TECHNICAL CHARACTERISTICS
SMK 60CRP
Body materialAluminium alloys
Length fuzed, mm310 max
Weight fuzed, kg1.200 max
Smoke composition typeSMK-1 (based on red phosphorous)
Time of smoke creation, s7 max
Duration of smoke emission, s35
Volume of smoke cloud, m38x103
Highest Max Pressure, bar (piezo)290 (0+2)
Fuze AF 610 arming distance, mnot less than 40
Operating Temperature Range, °Cfrom minus 40 to 50
Packing
One fuzed Mortar Bomb with 2 pcs. increment charges is packed in a plastic airtight container; 20 pcs. containers are arranged in a plastic airtight case
Plastic case dimensions, mm616x522x182
Plastic case weight, kg36
Plastic case volume, m30.0585
