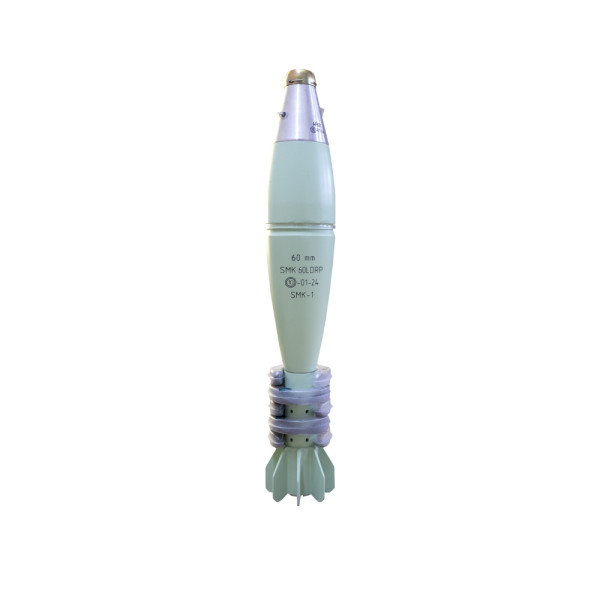

60 mm Smoke Mortar Bomb SMK 60LDRP

NSN(AF66): 1310-50-001-3278

NSN (AF621): 1310-50-001-8086

The 60 mm Smoke Mortar Bomb SMK 60LDRP is designed for marking objects, targets, creating a smoke screen in order to mask friendly units’ operations and is used for facilitation of the tactical deployment of friendly troops, as well as evading enemy fire. The smoke screen from the Bomb is also used for suppression of enemy surveillance and reconnaissance means, prevention from aimed fire.

Main Features:

  • Immediate creation of dense smoke screen;
  • Bigger density of the smoke screen, compared to white phosphorous ammunition;
  • Provides igniting action.

This Mortar Bomb is fuzed with AF621 (Point detonating, super quick action, boresafe type) or AF66 (Point detonating, super quick action, boresafe type, muzzle safety distance 40 m) fuze.

The 60 mm Smoke Mortar Bomb SMK 60LDRP is intended to be used with any type of smooth bore 60 mm Mortars of NATO Standard – such as COMMANDO Mortar M60CMA, M60MA, M2 and M19, BRANDT model 35, Tampella, Thompson Houston – Hotchkiss – Brandt Commando, M-57, M6H and M6C Hirtenberger, etc.

It is absolutely prohibited to fire any type of Mortar bombs with bigger than 2nd increment charge from 60 mm Commando Mortars!

When firing with Mortars M2 and M19 do not fire over charge 4!

BALLISTIC DATA
Average Maximum Pressure, bar (piezo)
Fuze AF621Fuze AF66
640 mm barrel Commando250 (0+2)250 (0+2)
640 mm barrel 450 (0+4)450 (0+4)
1000 mm barrel 540 (0+5)540 (0+5)
Average Max Range, m
640 mm barrel Commando1 577 (0+2)1 577 (0+2)
640 mm barrel2 797 (0+4)2 797 (0+4)
640 mm barrel4 058 (0+5)4 058 (0+5)
Average Muzzle velocity, m/s
640 mm barrel Commando140 (0+2)140 (0+2)
640 mm barrel196 (0+4)196 (0+4)
1000 mm barrel249 (0+5)249 (0+5)
TECHNICAL CHARACTERISTICS
Fuze AF621 Fuze AF66
Body materialSpheroidal Graphite Cast IronSpheroidal Graphite Cast Iron
Length fuzed, mm358 max365 max
Weight fuzed, kg1.960 max1.960 max
Smoke composition typeSMK-1 (based on red phosphorous)SMK-1 (based on red phosphorous)
Weight of SMK-1, kg0.300 max0.300 max
Time of smoke creation, s7 max7 max
Duration of smoke emission, snot less than 30not less than 30
Volume of smoke cloud, m38.5x1038.5x103
Highest Max Pressure, bar (piezo)
● 640 mm barrel Commando290 (0+2)290 (0+2)
● 640 mm barrel500 (0+4)500 (0+4)
● 1000 mm barrel600 (0+5)600 (0+5)
Fuze AF 66 arming distance, m-not less than 40
Operating Temperature Range, °Cfrom minus 40 to 50from minus 40 to 50
Packing
60 mm SMK 60LDRP
TypeOne fuzed Mortar Bomb with 5 pcs. Increment charges is packed in a Container; 10 pcs. Containers are arranged in a wooden case.
Wooden case dimensions, mm469х400х220
Wooden case weight, kg29
Wooden case volume, m30.041
CLASS OF EXPLOSION HAZARD:1.2G, UN 0015
