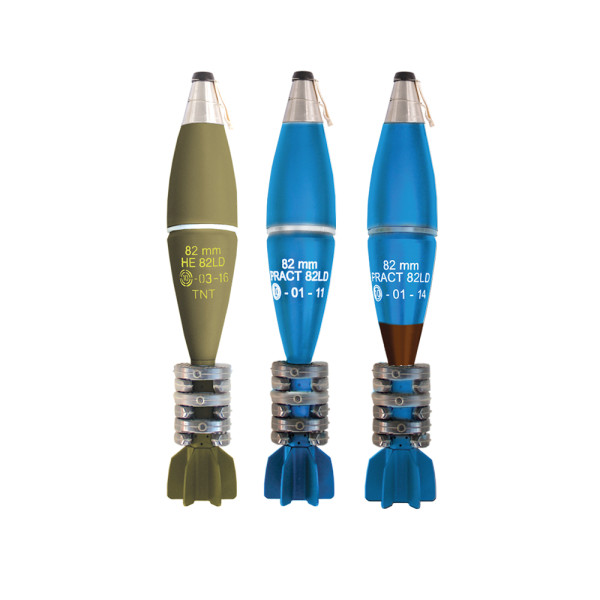

82 mm Mortar Bombs HE 82LD, PRACT 82LD and PRACT 82LDTM

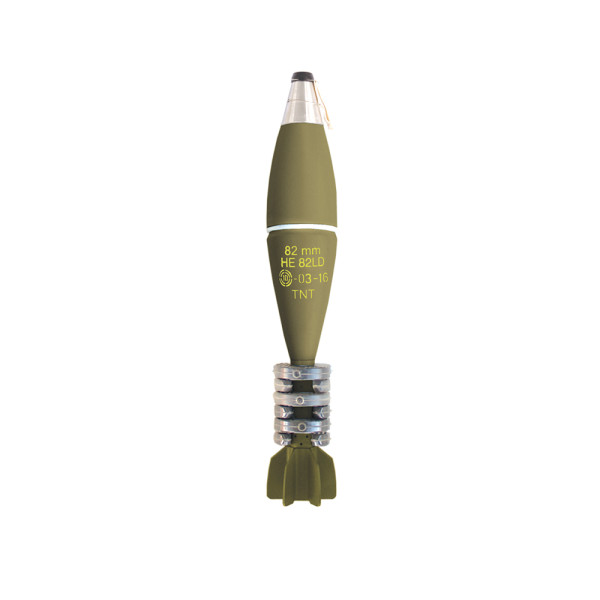

HE 82LD
NSN:1315-50-001-1768

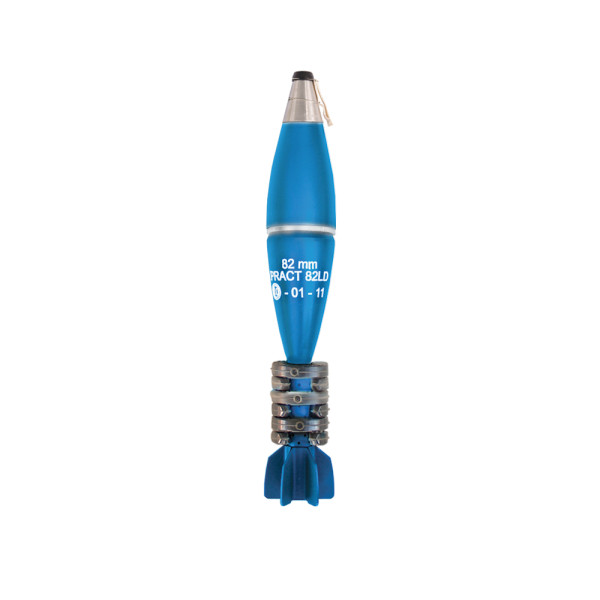

PRACT 82LD
NSN:1315-50-001-1766

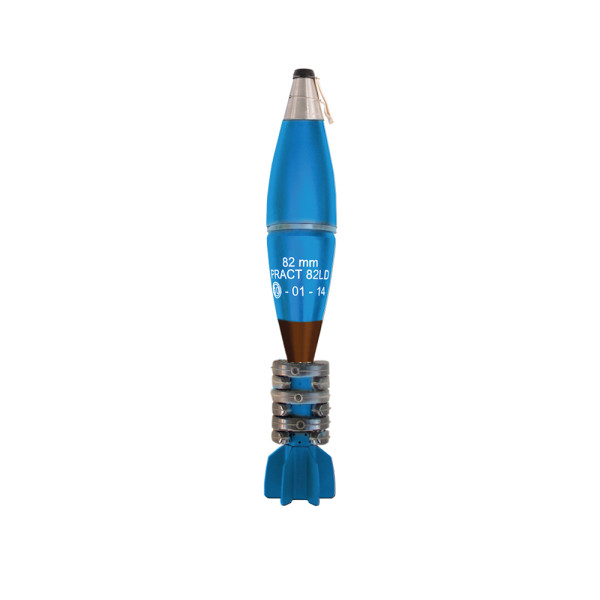

PRACT 82LDTM
NSN:1315-50-001-4761



The 82 mm HE 82LD Mortar Bomb is one of the most up-to-date high explosive bombs of the 82 mm caliber. Its performance – especially range and effect – is the best possible for any tactical purpose.

The HE 82LD is one of the most up-to-date high explosive bombs of 82 mm caliber, due to its streamlined design of the body and well calculated and shaped fin stabilizer assy, the bomb can reach 6 200 m firing range which is among the longest and most accurate ranges known for this type of ammunition.

The optimum blast and fragmentation effect of approximately  1 400 effective fragments is achieved by the use of spheroidal graphite cast iron with predominately ferritic structure.

Main Features:

This Mortar Bomb is fuzed with AF621 (Point detonating, super quick action, boresafe type) fuze.

The HE 82LD Mortar Bomb has been designed as suitable ammunition for the 82 mm caliber Mortars, with a barrel length not less than 1 220 mm.

82 mm HE 82LD can be fired from 82 mm Mortar M82MA and M82MAL, etc.

BALLISTIC DATA
Average Maximum Pressure, bar (piezo)900 (0+6)
Average Max Range, m
● 1 220 mm barrel5 768 (0+6)
● 1 480 mm barrel6 200 (0+6)
Average Muzzle velocity, m/s
● 1 220 mm barrel296 (0+6)
● 1 480 mm barrel312 (0+6)
BASIC CHARACTERISTICS
HE 82LDPRACT 82LDPRACT 82LDTM
Body materialSpheroidal Graphite Cast IronSpheroidal Graphite Cast IronSpheroidal Graphite Cast Iron
Length fuzed, mm489 max489 max489 max
Weight fuzed, kg4.15 max4.210 max4.210 max
Weight of Explosive charge (TNT), kg0.750 max--
Weight of the inert charge, kg-0.750.7
Highest Max Pressure, bar (piezo)950 (0+6)950 (0+6)950 (0+6)
Weight of pyrotechnical marking composition, kg--0.05
Duration of smoke emission,s--10 minimum
FuzeAF66, AF62, AF64, AF621AF66, AF62, AF64, AF621 or dummy fuzeAF62, AF64, AF66, AF621
Operating Temperature Range, °Cfrom minus 40 to 50from minus 40 to 50from minus 40 to 50
Packing
One fuzed Mortar Bomb with 6 pcs. Increment charges is packed in a Container; 6 pcs. Containers are arranged in a wooden case.
Wooden case dimensions, mm600x325x260
Case weight, kg38
Case volume, m30.051
Class of explosion hazard1.2E, UN 0321
