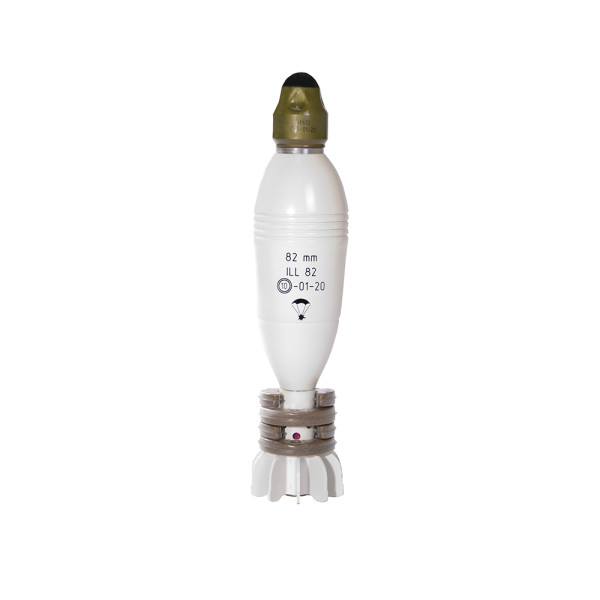

82 mm Mortar Bomb ILL 82

NSN: 1315-50-001-5918

The 82 mm Illuminating Mortar Bomb ILL 82 is intended for artificial illumination of the target area for the purposes of reconnaissance, firing, supporting the fire of the anti-tank means, and for performance of other tactical actions on the battlefield.

The payload of the bomb is a movable illuminating system consisting of a parachute system and an illuminating flare.

After the ejection of the illuminating system over the target, flare descent is smooth and slow due to the parachute system, and its spiral motion provides maximum illuminating effect during the whole time of flare burning.

Main Features:

This Mortar Bomb is fuzed with AF612 (Pyrotechnic time and super quick) fuze.

The Mortar Bomb ILL 82 can be fired from the following weapons: 82 mm Mortar M82MA, 82 mm Mortars of Russian standard: mod. 1937, mod. 1941, mod. 1943, 52-M-832, etc.

Do not fire the ILL 82 with Ignition Cartridge only.

BALLISTIC DATA
82 mm ILL 82
Average Maximum Pressure (Crusher), kgf/cm2450 (0+4)
Average Max Range, m3 426 (0+4)
Average Muzzle velocity, m/s244 (0+4)
BASIC CHARACTERISTICS
82 mm ILL 82
Body materialSteel
Length fuzed, mm357 max
Weight fuzed, kg3.180 max
PayloadIlluminating pyrotechnical composition with parachute
Illumination power, cd300 000
Average flare burning time, s35
Height of burst, m300
Highest Max Pressure (Crusher), kgf/cm2500 (0+4)
Operating Temperature Range, °Cfrom minus 40 to 50
Packing
One fuzed Mortar Bomb with 4 pcs. Increment charges is packed in a Container; 12 pcs. Containers are arranged in a wooden case
Wooden case dimensions, mm653x440x268
Wooden case weight, kg56
Wooden case volume, m30.077
