82 mm Mortar Bombs

82 mm PRACT 82 and PRACT 82TM

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

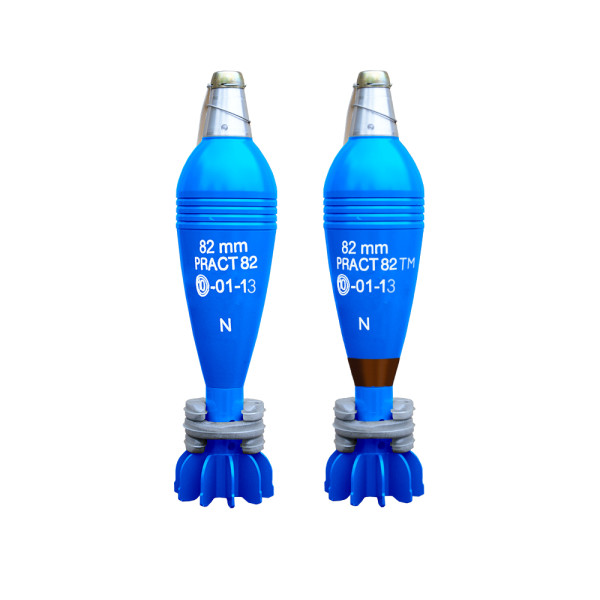

82 mm Mortar Bombs PRACT 82 and PRACT 82TM

PRACT 82: NSN:1305-50-001-4192

PRACT 82TM: NSN: 1315-50-000-1767

The 82 mm PRACT 82 and PRACT 82TM has been designed as suitable ammunition for 82 mm caliber Mortars.

The 82 mm PRACT 82 and PRACT 82TM are ideal for training purpose. They has an inert load and their flight ballistics are identical to those of the high explosive version.

It is available with either a live impact fuze AF611, which will indicate impact at target.

Main Features:

The 82 mm PRACT 82 and PRACT 82TM can be fired from the following weapons:
82 mm Mortar M82MA, 82 mm Mortars of Russian standard: mod. 1937, mod. 1941, mod. 1943, 52-M-832, etc.

BALLISTIC DATA	PRACT 82	PRACT 82TM
Average Maximum Pressure (Crusher), kgf/cm²	430 (0+3)	430 (0+3)
Average Max Range, m	3 107 (0+3)	3 107 (0+3)
Average Muzzle velocity, m/s	211 (0+3)	211 (0+3)
Class of explosion hazard	1.2E, UN 0321	1.2E, UN 0321

BASIC CHARACTERISTICS	PRACT 82	PRACT 82TM
Body material	Spheroidal Graphite Cast Iron	Spheroidal Graphite Cast Iron
Length fuzed, mm	345 max	345 max
Weight fuzed, kg	3.180 max	3.180 max
Weight of the inert charge, kg	0.420 max	0.370 max
Highest Max Pressure (Crusher), kgf/cm²	490 (0+3)	490 (0+3)
Fuze AF611	Point detonating, super quick action, boresafe type	Point detonating, super quick action, boresafe type
Operating Temperature Range, °C	from minus 40 to 50	from minus 40 to 50
Weight of pyrotechnical marking composition, kg	-	0.050 max
Duration of smoke emission, s	-	not less than 10

Packing	PRACT 82	PRACT 82TM
Type	One fuzed Mortar Bomb with 3 pcs. Increment charges is packed in a Container; 12 pcs. Containers are arranged in a wooden case.	One fuzed Mortar Bomb with 3 pcs. Increment charges is packed in a Container; 12 pcs. Containers are arranged in a wooden case.
Wooden case dimensions, mm	653x440x268	653x440x268
Case weight, kg	56	56
Case volume, m³	0.077	0.077
