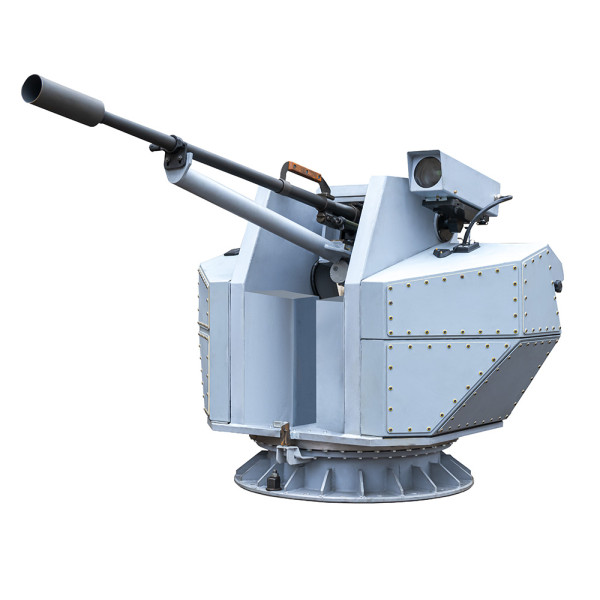

23x152 mm ARSENAL Defence System DS

(automated & remote controlled)

NSN: 1090- 50-001-7894



23x152 mm ARSENAL Defence System DS is a powerful weapon mainly used for destruction of light armored targets and firing points within the range of 2000 m, and slow-flying air targets.

Main Features:

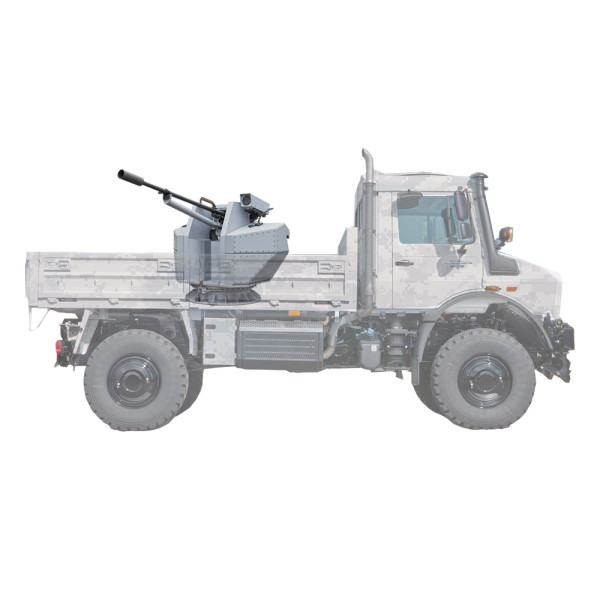

23x152 mm ARSENAL Defence System DS is designed to be operated on a truck type vehicle or on a prepared site stationary.

It consists of a 23x152 mm Cannon mounted on a carriage with electric drive on the axles and an electric trigger. The carriage is controlled by a computer system provided with main and backup power. Aiming is done through an optical sight.

Weapon feeding is performed by 50-round metal linked belt placed in a standard ammunition box for ZU-23.

The DS is provided with standard SPTA set.

OPTIONS (on Customer`s request; paid separately)
Modification of the parameters for horizontal and vertical firing according to the Customer's instructions;
Remote control of the fire;
Conjunction to current coordinate systems;
Conjunction to command posts;
Conjunction to special radar system;
Receiving remotely of target coordinates and self-laying of the System;
Connecting a group of Systems in an anti-aircraft artillery battery with a single remote control, for group hitting a target or hitting a group of targets;
Spare barrel, ammunition boxes and belts.
OPTIONS FOR DEVELOPMENT
The Control System design provides additional possibilities for extending the System functionality according to the needs of the Customer, such as: Conjunction to current coordinate systems; Conjunction to command posts; Conjunction to special radar system; Receiving remotely of target coordinates; Connecting a group of Systems in an artillery battery, etc., based and fixed on the requirements of the Communication Protocolsq Coordinate Systems and Digital Maps provided by the Customer.
STORAGE AND TRANSPORTATION
The ARSENAL Defence System DS allows storage in packaging developed by the manufacturer: 5 years in closed warehouses with sudden fluctuations in temperature and humidity; or 3 years in field conditions. The ARSENAL Defence System DS can be transported by all modes of transport and in all weather conditions in the manufacturer's packaging.
Technical Data
23x152 mm DS
Ammunition23x152 mm Rounds API-T, HEI-T, etc.
Muzzle velocity, m/s970
Fire modeSingle, automatic, in bursts
Rate of fire (computer controlled), rounds/min:up to 1000
Practical rate of fire, rounds/min:100
Maximum range of fire, m2 000
Engagement section, degrees
● Traverse270 (option 360)
● Elevationfrom –10 to +70
Aiming speed, deg/s
● Traverse40
● Elevation40
Accuracy to train the set angles, mrad0.2
System life (Cannon with one Barrel), rounds3 000
Operability for System autonomous operation from the standart battery, hat least 2
Ability of sustained fire without cooling of barrel, roundsat least 100
length, approx., mm2 610
width, approx., mm1 470
height, approx., mm1 220
Weight of the system, approx., kg1 300
