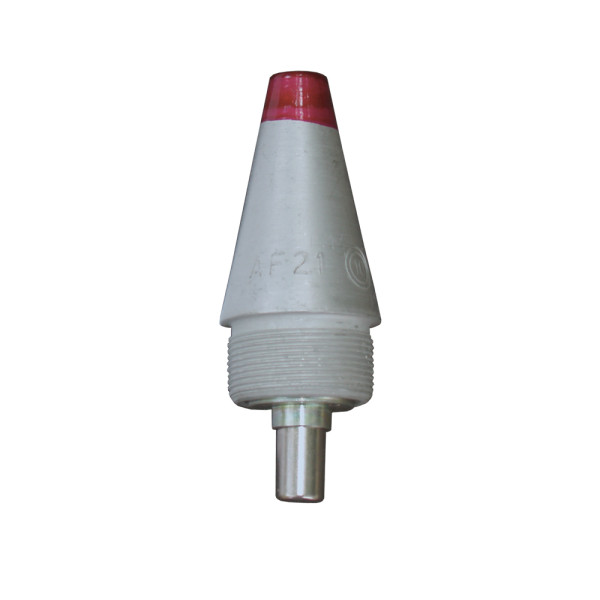

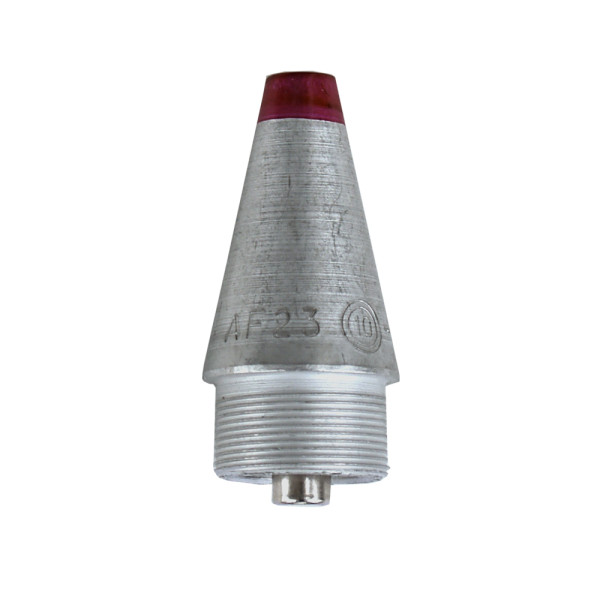

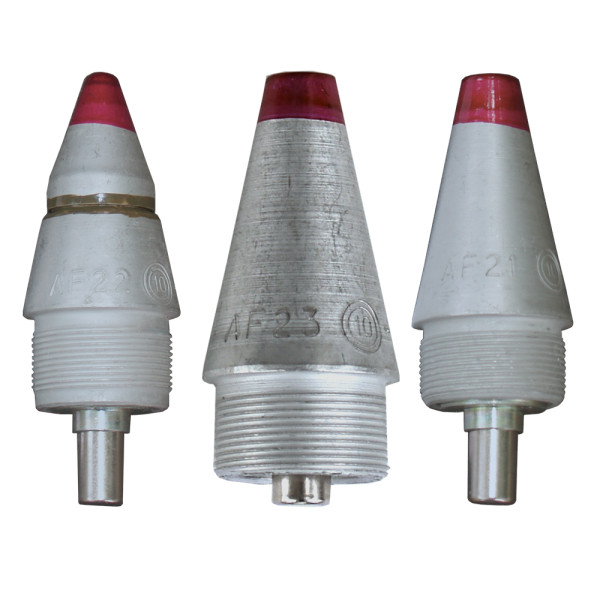

AF21,AF22,AF23

BASIC CHARACTERISTICS	AF21 (MG-25)	AF22 (V19UK)	AF23
Ammunition type	23x152 mm HEI, HEI-T	23x152 mm HEI, HEI-T	3x115 mm HEI, HEI-T, HEI-M
Mass of fuze, g	37	40	36
Quantity of safety barriers	1	1	1
Time of self-destruction, s	from 5.4 to 11	from 5.4 to 9.5	-
Sensitivity
Duralumin sheet thickness, mm	2	2	2
Operational temperature range,°C	from minus 50 to 50	from minus 50 to 50	from minus 50 to 50
Arming distance, m	from 2.5 to 100	from 2.5 to 100	from 2.5 to 100

BASIC CHARACTERISTICS

AF21 (MG-25)

AF22 (V19UK)

AF23

Ammunition type

23x152 mm HEI, HEI-T

3x115 mm HEI, HEI-T, HEI-M

Mass of fuze, g

Quantity of safety barriers

Time of self-destruction, s

from 5.4 to 11

from 5.4 to 9.5

Sensitivity

Duralumin sheet thickness, mm

Operational temperature range,°C

from minus 50 to 50

Arming distance, m

from 2.5 to 100
