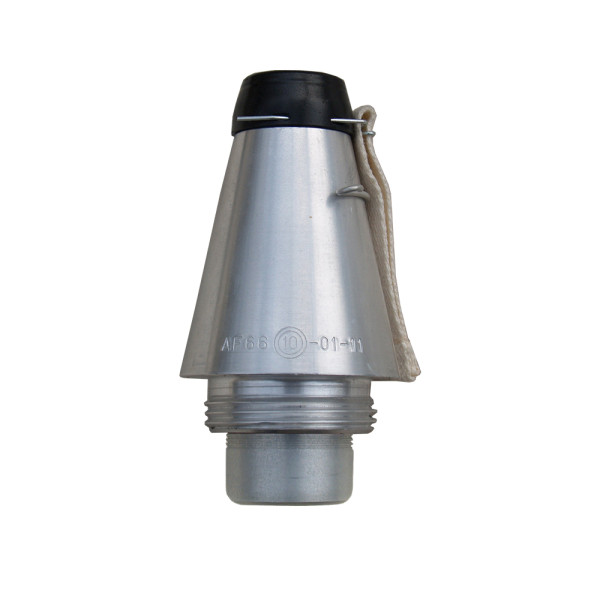

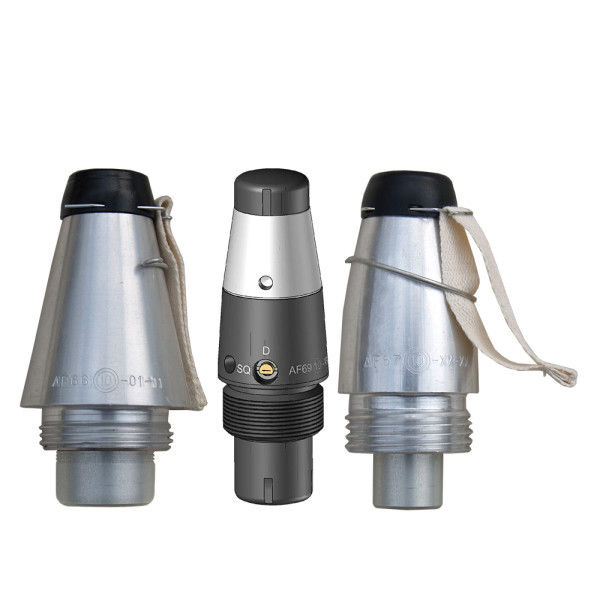

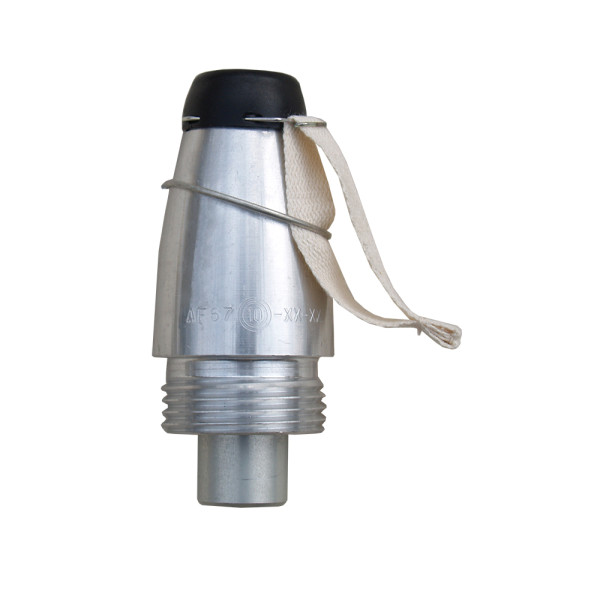

AF14, AF17

BASIC CHARACTERISTICS	AF14	AF17
Type of the Grenade	GH-S&F-1-01, GH-S&F-13, GH-SMK-W, GH-SMK-O, GH-SMK-R, GH-SMK-B, GH-CS, GH-CS-1,GH-S&F-CS	GH-SMK-2-W, GH-SMK-CS
Mass of fuze, g	40	38
Thread size	M20x2	Sp M15.45x13 turns in 1"
Overall dimensions, mm
● Height	85.3	85.3
● Width	47	47
Time of delay, s	from 1.5 to 2.3	from 2 to 4
Operational temperature range,°C	from minus 43 to 52	from minus 30 to 52
Dimensions of the packing (metal box), mm	Ø102, H115	Ø102, H115
Number of fuzes in one packing, pcs.	10	10
Gross weight of packing with fuzes, kg	0.58	0.54

BASIC CHARACTERISTICS

AF14

AF17

Type of the Grenade

GH-S&F-1-01, GH-S&F-13, GH-SMK-W, GH-SMK-O, GH-SMK-R, GH-SMK-B, GH-CS, GH-CS-1,GH-S&F-CS

GH-SMK-2-W, GH-SMK-CS

Mass of fuze, g

Thread size

M20x2

Sp M15.45x13 turns in 1"

Overall dimensions, mm

● Height

85.3

● Width

Time of delay, s

from 1.5 to 2.3

from 2 to 4

Operational temperature range,°C

from minus 43 to 52

from minus 30 to 52

Dimensions of the packing (metal box), mm

Ø102, H115

Number of fuzes in one packing, pcs.

Gross weight of packing with fuzes, kg

0.58

0.54
