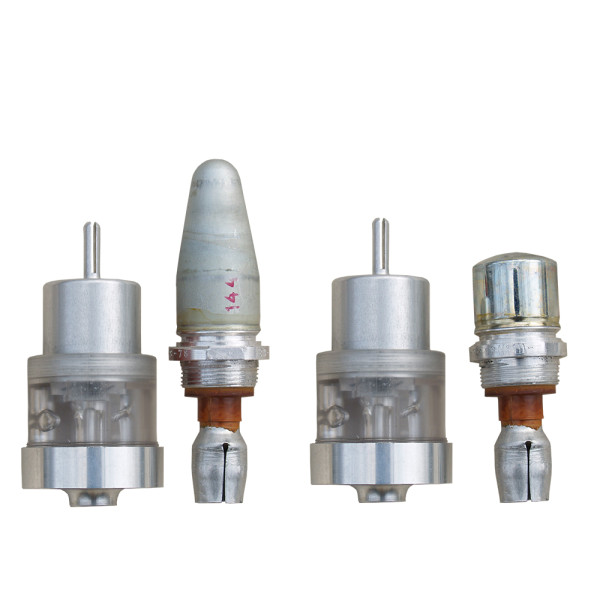

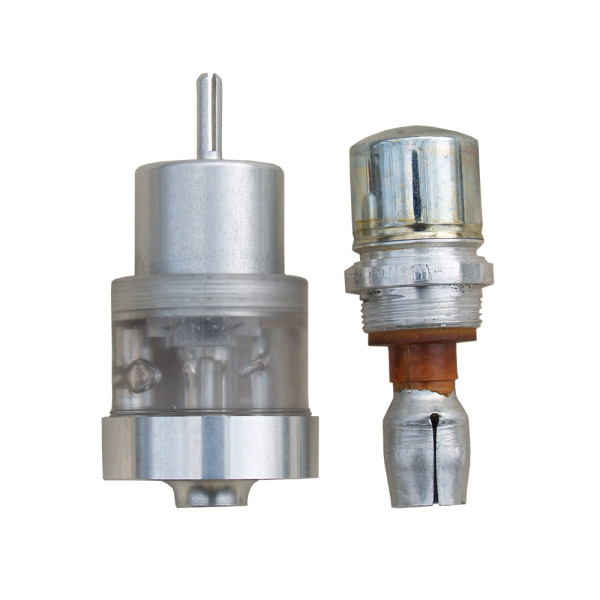

Fuzes for High-Explosive Fragmentation Anti-Tank and

High-Explosive Anti-Tank Rounds ARSENAL ATGL-H family. Russian SPG-9 and 2A28 Gun

AF91(SDM-93 and PEG-91)

NSN:1390-50-001-2511

AF78(SDM-72 and PEG-71)

NSN:1390-50-001-2515

BASIC CHARACTERISTICS	AF91 (SDM-93 and PEG-91)	AF78 (SDM-72 and PEG-71)
Ammunition type	RHEAT-9MA	RHEAT-7MA2
Activation at angle of impact	from 0° to 60°	from 0° to 60°
Self-destruction time, s	3.8÷6	3.5÷8
Arming distance, m	2.5÷20	2.5÷15
Height of safe falling, m	3	3
Operation temperature range,°C	from minus 50 to 50	from minus 50 to 50
Weight, kg
● Nose part PEG	0.052	0.050
● Bottom part SDM	0.096	0.070
