GHD-2

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

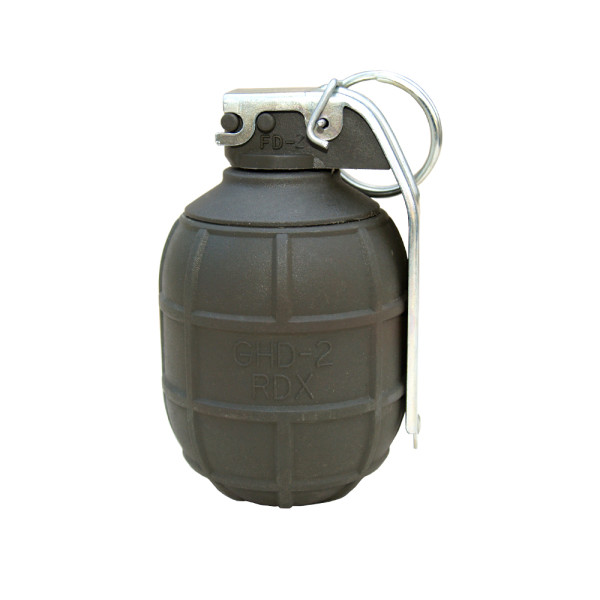

Hand Grenade Defensive GHD- 2

NSN: 1330-50-000-7198

The Grenades are used to produce casualties by high-velocity projection of fragments.

Performance:

- Cylindrical preformed fragments inside

- HE max blast and HE Fragmentation effect;

- Time delay fuze.

Packing
Number of grenades in one wooden case	20
Wooden case dimensions, mm	490x303x168
Wooden case gross weight, kg	15
Wooden case volume, m³	0.025

TECHNICAL CHARACTERISTICS	GHD-2
Grenade type	Defensive
Action	High explosive, Fragmentation
Fuze type	Time delay, AF11
Delay time, s	from 3.2 to 4.2
Total weight, kg	0.44
Overall dimension, mm
● Height	95
● Diameter	58
Preformed fragments number, pcs.	approx. 780
Weight of explosive charge, g	75
Type of explosive charge	RDX
Lethal radius, m	15
Safety radius, m	47 max
Operation temperature range, °C	from minus 43 to 52
CLASS OF EXPLOSION HAZARD:	1.1F, UN 0292
