GHD-3

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

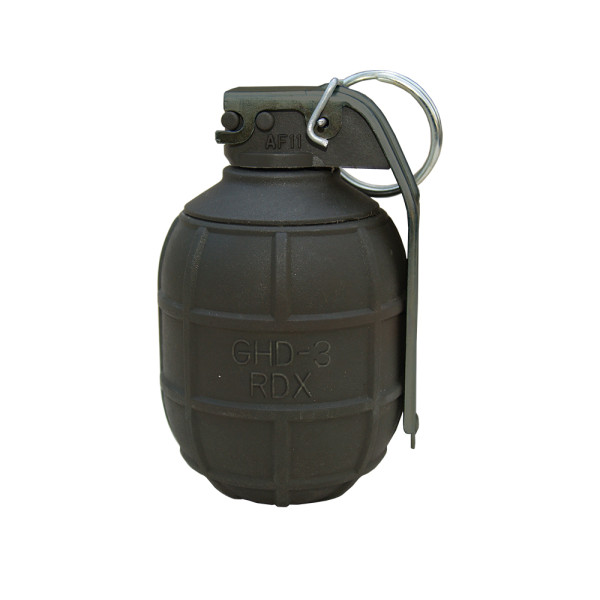

Hand Grenade Defensive GHD- 3

NSN:1330-50-001-5585

GHD-3 is a defensive hand grenade with preformed cylindrical fragments inside.

This type of grenade is designed for destruction of enemy manpower and light non-armoured vehicles when repulsing an enemy attack.

Packing
Number of grenades in one wooden case	20
Wooden case dimensions, mm	490x303x168
Wooden case gross weight, kg	16
Wooden case volume, m³	0.025
SHELF LIFE	10 years, if stored in storeroom conditions, in the original non-opened packing of the manufacturer, strictly observing all handling and storage instructions of the Manufacturer.

TECHNICAL CHARACTERISTICS	GHD-3
Grenade type	Defensive
Action	High explosive, Fragmentation
Fuze type	Time delay, AF11
Delay time, s	from 3.2 to 4.2
Total weight, kg	0.48
Overall dimension, mm
● Height	95
● Diameter	58
Preformed fragments number, pcs.	more than 4600
Total weight of fragments, kg	0.28
Fragment sizes, mm	Ø 2.2 x2.3
Weight of explosive charge, g	75
Type of explosive charge	RDX (A-IX-1)
Lethal radius, m	at least 5
Safety radius, m	25 max
Operation temperature range, °C	from minus 43 to 52
CLASS OF EXPLOSION HAZARD:	1.1F, UN 0292
