GHO-2

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

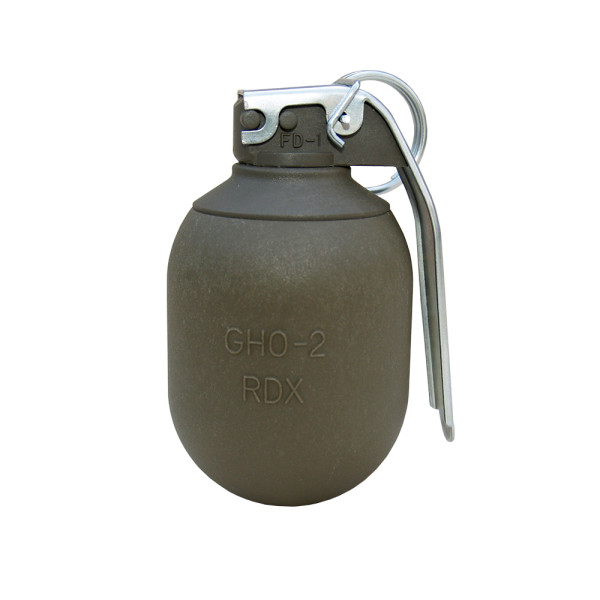

Hand Grenades Offensive GHO-2

NSN: 1330-50-001-1894

The Grenade is used to produce casualties by high-velocity projection of fragments.

Performance:

- HE max blast effect;

- Time delay fuze.

Packing
Number of grenades in one wooden case	20
Wooden case dimensions, mm	490x303x168
Wooden case gross weight, kg	12
Wooden case volume, m³	0.025

TECHNICAL CHARACTERISTICS	GHO-2
Grenade type	Offensive
Action	High explosive, Blast
Fuze type	Time delay, AF11
Delay time, s	from 3.2 to 4.2
Total weight, kg	0.240
Overall dimension, mm
● Height	95
● Diameter	56
Weight of explosive charge, g	75
Type of explosive charge	RDX
Lethal radius, m	2
Safety radius, m	15
Operation temperature range, °C	from minus 43 to 52
CLASS OF EXPLOSION HAZARD	1.1F, UN 0292
