GH-CS , GH-CS-1

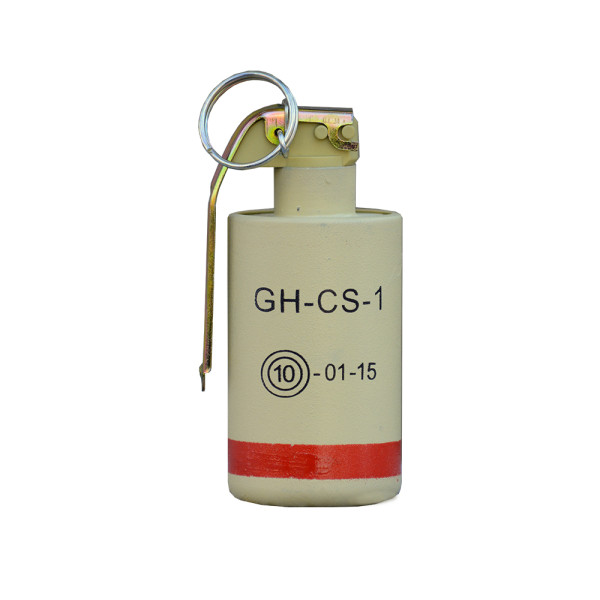

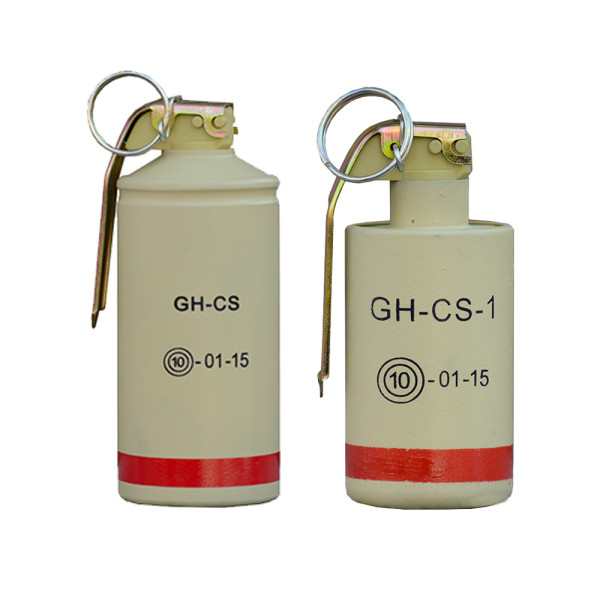

Hand Grenades with Irritant action GH-CS and GH-CS-1

GH-CS: NSN 1330-50-001-2657

GH-CS-1: NSN 1330-50-001-3043

The Hand Grenades GH-CS and GH-CS-1 are used to incapacitate criminals, handle hostage situations, assist counter terrorist operations, as well as, operations for order restoration, via creation of partition irritant smoke screen / cloud.

The purpose of the intended use is to obtain the incapacitating effect, i.e. temporarily incapacitate a person, preventing from active well-directed operations and physical aggressive activity via the creation of a smoke cloud with irritant substance.

Packing
36 Grenades, each one wrapped in a wax paper, are packed in a wooden case.	20 Grenades are packed in a metal airtight box. Three metal boxes are arranged in a wooden case (60 grenades totally).
Wooden case dimensions, mm	420 x 400 x 216	875 x 398 x 206
Wooden case gross weight, kg	22	27
Wooden case volume, m³	0.034	0.072

Packing

36 Grenades, each one wrapped in a wax paper, are packed in a wooden case.

20 Grenades are packed in a metal airtight box. Three metal boxes are arranged in a wooden case (60 grenades totally).

Wooden case dimensions, mm

420 x 400 x 216

875 x 398 x 206

Wooden case gross weight, kg

Wooden case volume, m³

0.034

0.072

TECHNICAL CHARACTERISTICS	GH-CS	GH-CS-1
Weight, kg	0.43 max	0.22 max
Overall dimensions, mm
● Diameter	58	51
● Height	145	118
Fuze type	AF14	AF14
Fuze delay time, s	from 1.5 to 2.3	from 1.5 to 2.3
Irritant agent	CS	CS
Time till start irritant smoke releasing, s	up to 5	up to 5
Time for the creation of irritant smoke, s	at least 15	at least 15
Volume of the cloud with incapacitant concentration, m³	400	200
Filling	Pyrotechnic composition based on CS	Pyrotechnic composition based on CS
Operational temperature range, °C	from minus 43 to 52	from minus 43 to 52
CLASS OF EXPLOSION HAZARD	1.4G (6.1, 8); UN 0301	1.4G (6.1, 8); UN 0301
