GHO-1P

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

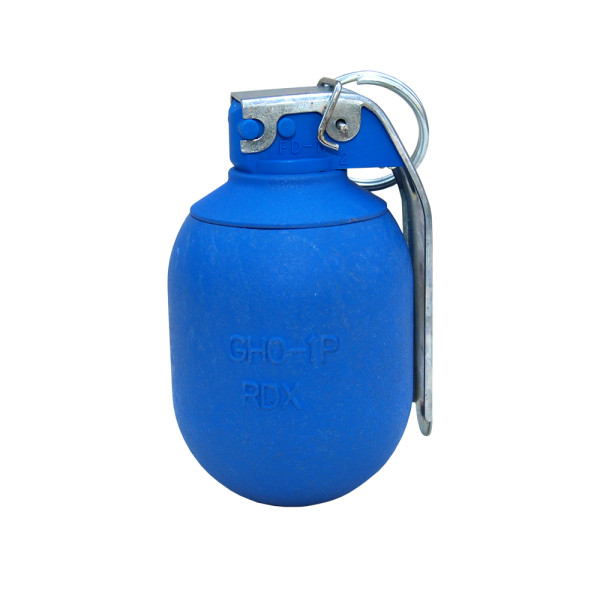

Practice Offensive Hand Grenade GHO-1P
NSN:1330-50-001-0620

GHO-1P is a Practice Offensive Hand Grenade, intended to train
soldiers how to operate with grenades.

The grenades perform sound, flash and smoke effects analogical to the combat grenade,
but without lethal fragments.

Packing 23 grenades in plastic containers, are packed in a wooden case
Wooden case dimensions, mm	488x353x151
Wooden case gross weight, kg	14
Wooden case volume, m³	0.026

TECHNICAL CHARACTERISTICS	GHO-1P
Grenade type	Practice
Action	Smoke, Sound, Flash
Fuze type	AF12
Delay time, s	from 3.0 to 5.0
Total weight, kg	not more than 0.3
Overall dimension, mm
● Height	95
● Diameter	56
Intensity of the sound at the distance of 0.3 m, dB	from 130 to 170
Safety radius, m	not more than 5
Operation temperature range, °C	from minus 43 to 52
CLASS OF EXPLOSION HAZARD:	1.2G, UN 0372
