EKV-23A

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

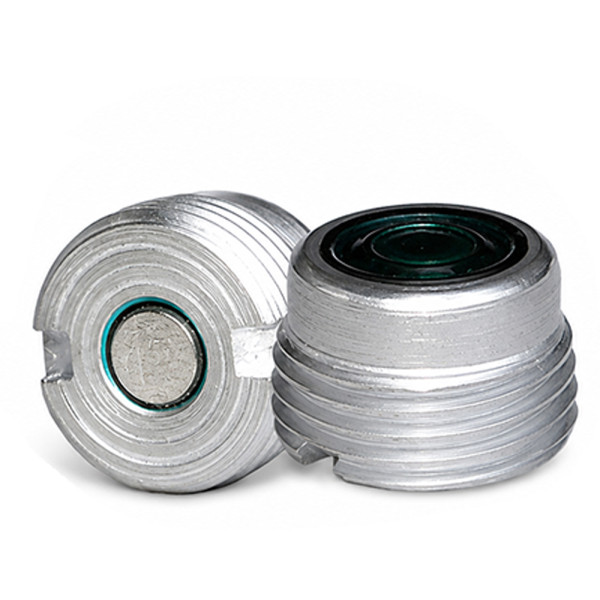

Electric Primer Sleeve EKV-23A

Designation:

The Electric Primer Sleeve EKV-23A is intended to ignite the Propellant Charge of Rounds PG-15 and OG-15 typer for 2A28 System.

PACKING
EKV-23A in a cardboard box	135 pcs.
Cardboard boxes (945 pcs. EKV-23A) in a metal airtight box	7 pcs.
Metal sealed boxes (totally 2835 pcs. EKV-23A) in a wooden case	3 pcs.
Wooden case dimensions, mm	875x398x206
Wooden case gross weight, kg	29
Wooden case volume, m³	0.072
CLASS OF EXPLOSION HAZARD	1.4 S, UN 0454

TECHNICAL CHARACTERISTICS	EKV-23A
Diameter, mm	10.7
Overall length, mm	8.35
Fixing thread, mm	Sp.2M12x1
Weight, g	4.7
Resistance, Ω	from 1 to 5
Safety current, A	0.05, 10 minutes
Activation voltage, V	16.5± 0.5
Operation temperature range, °C	from minus 60 to 80
