EKV-30M

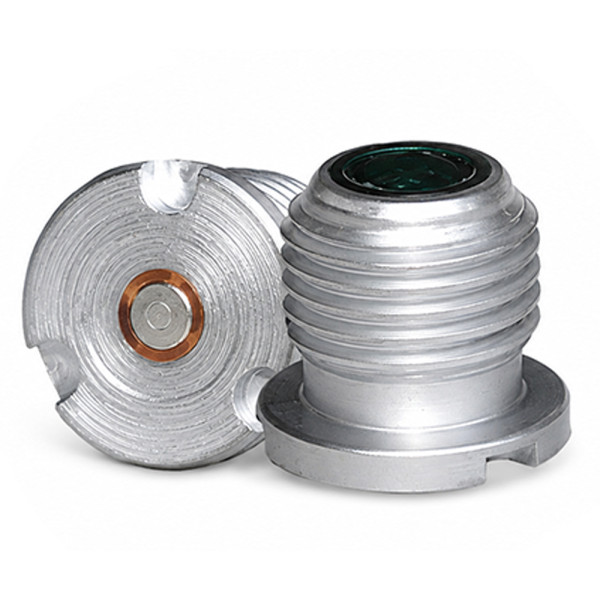

Electric Primer Sleeve EKV-30M

DESIGNATION:

The Electric Primer Sleeve EKV-30M is intended to ignite the propellant charge of 30x165 mm Rounds for:

-30 mm GSh-30, GSh-30K, GSh-301 and GSh-6-30 automatic aircraft guns

-30 mm GSh-6-30K, GSh-6-30L, 6K30GSh automatic air defence guns

-30 mm AK-630, AK-306 shipboard gun mounts

-Kashtan AD missile-gun system etc.

PACKING
EKV-30M in a cardboard box	56 pcs.
Cardboard boxes (560 pcs. EKV-30M) in an airtight metal box	10 pcs.
Metal sealed boxes (totally 1120 pcs. EKV-30M) in a wooden case	2 pcs.
Wooden case dimensions, mm	875x398x206
Wooden case gross weight, kg	67
Wooden case volume, m³	0.072
CLASS OF EXPLOSION HAZARD	1.4 S, UN 0454

PACKING

EKV-30M in a cardboard box

56 pcs.

Cardboard boxes (560 pcs. EKV-30M) in an airtight metal box

10 pcs.

Metal sealed boxes (totally 1120 pcs. EKV-30M) in a wooden case

2 pcs.

Wooden case dimensions, mm

875x398x206

Wooden case gross weight, kg

Wooden case volume, m³

0.072

CLASS OF EXPLOSION HAZARD

1.4 S, UN 0454

TECHNICAL CHARACTERISTICS	EKV-30M
Diameter, mm	16
Overall length, mm	14.6
Fixing thread, mm	Sp.D 13.3 x 18 tpi, class 2
Weight, g	10.4
Maximum pressure, kg/cm²	3400
Resistance, Ω	from 0.5 to 2.5
Safety current, A	0.2±0.02; 5 minutes
Activation voltage, V	26±2
Operational temperature range, °C	from minus 50 to 50

TECHNICAL CHARACTERISTICS

EKV-30M

Diameter, mm

Overall length, mm

14.6

Fixing thread, mm

Sp.D 13.3 x 18 tpi, class 2

Weight, g

10.4

Maximum pressure, kg/cm²

3400

Resistance, Ω

from 0.5 to 2.5

Safety current, A

0.2±0.02; 5 minutes

Activation voltage, V

26±2

Operational temperature range, °C

from minus 50 to 50
