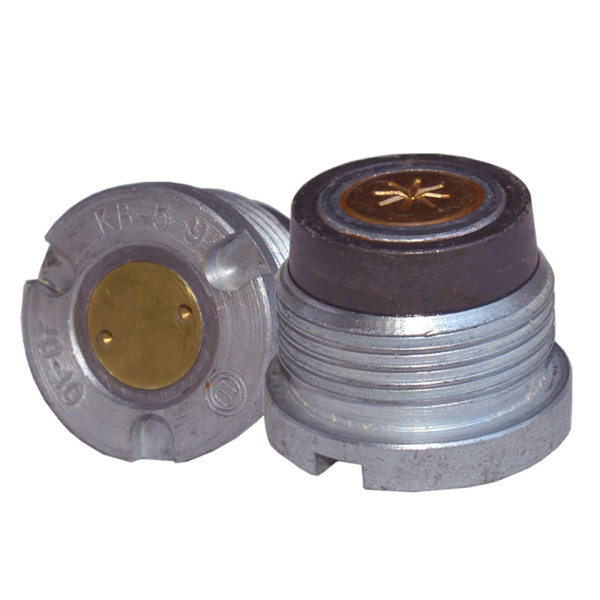

KV-5-U

Primer Sleeve KV-5-U

DESIGNATION:

The Primer Sleeve KV-5-U is intended to ignite the Propellant Charges of artillery, tank, anti-tank and anti-aircraft ammunition(cal.57 mm, 85 mm, 100 mm, 130 mm and 152 mm) for:

57 mm anti-aircraft gun S-60
85 mm anti-tank gun D-48
100 mm anti-tank guns T-12 and KS-19
115 mm tank gun U-5TS
130 mm anti-aircraft gun KS-30
130 mm field gun M-46
152 mm gun M-47

PACKING
Primer sleeves in a cardboard box	24 pcs.
Cardboard boxes (192 pcs. Primer sleeves) in an airtight metal box	8 pcs.
Metal sealed boxes (totally 576 pcs. Primer sleeves) in a wooden case	3 pcs.
Wooden case dimensions, mm	875x398x206
Wooden case gross weight, kg	65
Wooden case volume, m³	0.072
CLASS OF EXPLOSION HAZARD	1.4S, UN 0368

PACKING

Primer sleeves in a cardboard box

24 pcs.

Cardboard boxes (192 pcs. Primer sleeves) in an airtight metal box

8 pcs.

Metal sealed boxes (totally 576 pcs. Primer sleeves) in a wooden case

3 pcs.

Wooden case dimensions, mm

875x398x206

Wooden case gross weight, kg

Wooden case volume, m³

0.072

CLASS OF EXPLOSION HAZARD

1.4S, UN 0368

TECHNICAL CHARACTERISTICS	KV-5-U
Diameter, mm	30
Overall length, mm	24.25
Fixing hread, mm	Sp. D 27.178x14 turns per inch, class 2
Weight, g	90
Operational Temperature Range, °C	from minus 40 to 50

TECHNICAL CHARACTERISTICS

KV-5-U

Diameter, mm

Overall length, mm

24.25

Fixing hread, mm

Sp. D 27.178x14 turns per inch, class 2

Weight, g

Operational Temperature Range, °C

from minus 40 to 50
