5.56x45 mm and 7.62x39 mm LMG-F

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

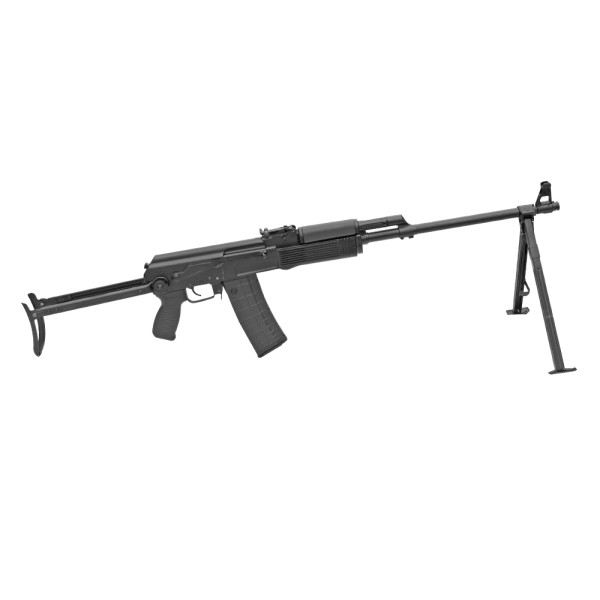

5.56x45 mm ARSENAL Light Machine Guns LMG-F with folding butt
NSN: 1005-50-000-0718

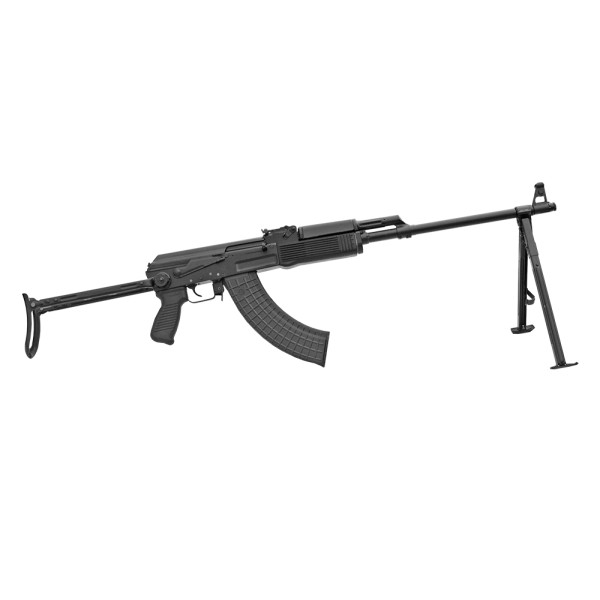

7.62x39 mm ARSENAL Light Machine Guns LMG-F with folding butt
NSN: 1005-50-001-2493

Gas operated automatic rifle.
Hot-die forged and milled receiver for increased durability and service life.
Chromium plated Barrel, manufactured by the method of cold radial forging, providing bigger hardness and better structure of the material.
FRP (fiber glass reinforced polycaproamide) Lower and Upper hand guards, Pistol grip, Butt and 40-round Magazine – heat/cold resistant with antiglare matte finish.
Collapsible bipod.
Folding metal butt.

Optional Extras (Paid Separately):

ACCESSORIES
Cleaning rod
Sling
Oil can
2 pcs. bags for 4 magazines
Box with accessories (brush, drift, scourer (cal. 5.56), slush brush (cal. 7.62), screwdriver)
8 pcs. magazines for 30 cartridges (cal. 5.56)
● 5.56x45 mm
8 pcs. magazines for 40 cartridges (cal. 7.62)
● 7.62x39 mm
Individual kit of spare parts consisting of: extractor, extractor`s spring, firing pin
Bag for spare parts

Packing	cal. 5.56	cal. 7.62
Number of rifles in one wooden case	6	6
Case dimensions, mm	1190x650x400	1190x650x400
Gross Weight of the wooden case, kg	82	84
Volume of the wooden case, m³	0.31	0.31

Specifications	LMG-F	LMG-F
Calibre,mm	5.56	7.62
Cartridge, mm	5.56x45	7.62x39
Fire mode	single and automatic	single and automatic
Rate of fire, rounds/min	600	600
Practical rate, rounds/min	150	150
Practical rate, rounds/min
● Automatic fire
● Single fire	50	50
Muzzle velocity, m/s		750
Muzzle velocity, m/s
● Bullet type M 193	980	-
● Bullet type SS 109	930	-
Sighting range, m	up to 1000	1000
Maximum firing range, m	up to 2000	1500
Effective firing range, m	600	500
Magazine capacity, rounds	30	40
Barrel length, mm	590	590
Sight radius, mm	555	555
Overall length, mm	1060	1060
Overall length, mm
● With extended butt
● With folded butt in travelling position	825	825
Weight, kg
● Rifle without magazine	4.8	4.8
● Loaded magazine	0.58	0.92
System life, rounds	20 000	20 000
Principle of function	gas operated	gas operated
