Home / Military & Law Enforcement / Weapons / Machine Guns / 7.62x51 mm MG-М2

Machine Guns

7.62x51 mm MG-М2

7.62x51 mm MG-М2
7.62x51 mm MG-М2

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

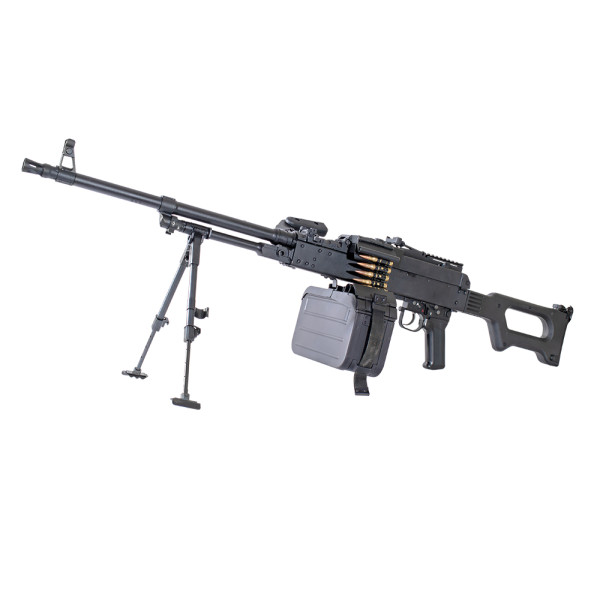

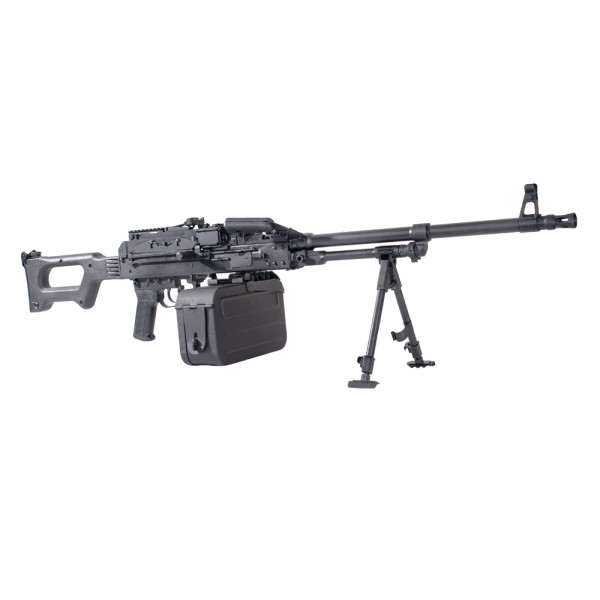

7.62x51 mm ARSENAL Machine Gun MG-M2

NSN: 1005-50-001-4070

7.62x51 mm ARSENAL Machine Gun MG-M2 is a powerful individual automatic weapon designed to be used against enemy troops, light armoured targets and aerial targets by firing in single and automatic fire mode.

Main Features:

  • Gas operated.
  • Fire mode - single, automatic
  • Chromium plated Barrel, manufactured by the method of cold radial forging, that resulted in bigger hardness and better structure of the material.
  • Butt and Pistol grip, made of high quality and resistant fiber glass reinforced polycaproamide (FRP), not effected after heating by direct sun lights, corrosion and humidity resistance, light and firm.
  • Feeding cartridges is done by a disintegrating metal belt, consists of metal links M13 type, accommodated in a box of capacity 100 or 200 cartridges.
  • The receiver cover is fitted with a rail for attachment of optical sight or night vision device. The shape and dimensions of the rail are according to MIL-STD-1913.
Optional Extras (Paid Separately):
  • Blank fire attachment – suitable for training purposes, using Blank Cartridges;
  • Upon Customer’s request, the Machine Gun can be provided with different numbers of ammunition boxes, as well as with 250-round ammo box to be used with tripod.
  • Tripod TAR-MG, produced in Arsenal JSCo (the name of the machine gun becomes MG-M2S). The tripod allows to conduct fire with Machine Gun at ground or low flying air targets, and thus the efficiency of fire is increased.
  • The weapon can be equipped with additional Carrier with small Picatinny rail, for attachment of front handle.
  • front sight adjusting kit.
ACCESSORIES
Spare barrel
Bag with spare parts consisting of firing pin, extractor, extractor spring, extractor pin, locking pin of extractor pin. and Extracting device for split cartridge cases
Box with accessories (brush, drift, scourer, screwdriver)
Cleaning rod
Sling
2 pcs. ammunition box for 100 rounds capacity each
2 pcs. ammunition box for 200 rounds capacity each
Canvas carrying bag for spare barrel
Canvas carrying bag for machine gun
Packing
Number of machine guns in one wooden case2
Case dimensions, mm1330 x 525 x 350
Gross weight of the wooden case, kg68 nominal
Volume of the wooden case, m30.24
Specifications
Calibre, mm7.62
Ammunition, mm7.62x51
Fire modeautomatic, single
Cyclic rate of fire, minimum, rounds/min650
Practical rate of fire, rounds/min250
Muzzle velocity, m/s850
Iron Sight range, m1500
Effective firing range, m1000
Maximum firing range, m3800
FeedingAmmunition Box of 100/200 rounds via M13 disintegrating metallic links.
Ammunition box capacity, rounds100/200
Barrel length, mm545
Sight radius, mm660
Overall length, mm1200
Weight without ammunition box, kg9.3
Weight of loaded ammunition box, kg
● With loaded 100-round metal belt3.9
● With loaded 200-round metal belt6.6
System life, rounds25 000
Mode of operationGas operated
