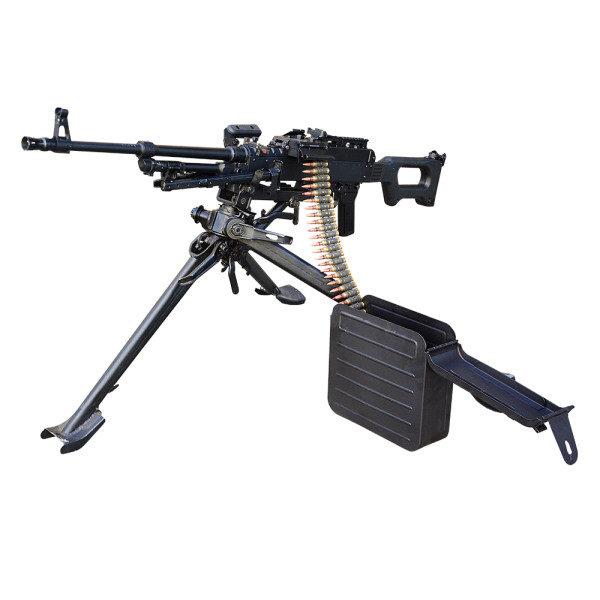

7.62x51 mm MG-М2S

Overview

MAIN FEATURES:

Gas operated.

Fire mode - single, automatic

Chromium plated Barrel, manufactured by the method of cold radial forging, that resulted in bigger hardness and better structure of the material.

Butt and Pistol grip, made of high quality and resistant fiber glass reinforced polycaproamide (FRP), not effected after heating by direct sun lights, corrosion and humidity resistance, light and firm.

Feeding cartridges is done by a disintegrating metal belt, consisting of metal links M13 type, accommodated in a box of capacity 100 or 200 cartridges.

The receiver cover is fitted with a rail for attachment of optical sight or night vision device. The shape and dimensions of the rail are according to MIL-STD-1913.

The Machine Gun MG-M2S is equipped with folding, telescopic, 5-stage adjustable bipod, The MG-M2S is mounted on the tripod TAR-MG, without removing the bipod. The tripod is used to achieve more precision and efficiency of fire at air and ground targets, thus efficiency of fire is increased.

Optional Extras (Paid Separately):

Blank fire attachment – suitable for training purposes, using Blank Cartridges;
Upon Customer’s request, the Machine Gun can be provided with different numbers of ammunition boxes, as well as with 250-round ammo box to be used with tripod.
Tripod TAR-MG, produced in Arsenal JSCo (the name of the machine gun becomes MG-M2S). The tripod allows to conduct fire with Machine Gun at ground or low flying air targets, and thus the efficiency of fire is increased.
The weapon can be equipped with additional Carrier with small Picatinny rail, for attachment of front handle.
For quick target acquistion at dusk the Machine Gun Sighting devices can be equipped with Tritium Self-illuminating dots ( 3-dot sight system).
Front sight adjusting kit.

ACCESSORIES
Spare barrel
Bag with spare parts consisting of firing pin, extractor, extractor spring, extractor pin, extracting device for split cartridge cases
Box with accessories (brush, drift, scourer, screwdriver)
Cleaning rod
Sling
4 pcs. ammunition box for 200 rounds capacity each
Canvas carrying bag for spare barrel
Canvas carrying bag for machine gun
2 pcs Cross strap
Breast strap
Strap for fixing 2 pcs ammunition boxes to the travelling position

ACCESSORIES

Spare barrel

Bag with spare parts consisting of firing pin, extractor, extractor spring, extractor pin, extracting device for split cartridge cases

Box with accessories (brush, drift, scourer, screwdriver)

Cleaning rod

Sling

4 pcs. ammunition box for 200 rounds capacity each

Canvas carrying bag for spare barrel

Canvas carrying bag for machine gun

2 pcs Cross strap

Breast strap

Strap for fixing 2 pcs ammunition boxes to the travelling position

Packing
Number of machine guns in one wooden case	1
Case dimensions, mm	1330 x 525 x 350
Gross weight of the wooden case, kg	53 nominal
Volume of the wooden case, m³	0.25

Packing

Number of machine guns in one wooden case

Case dimensions, mm

1330 x 525 x 350

Gross weight of the wooden case, kg

53 nominal

Volume of the wooden case, m³

0.25

Specifications
Calibre, mm	7.62
Ammunition, mm	7.62x51
Fire mode	automatic, single
Cyclic rate of fire, minimum ,rounds/min	650
Practical rate of fire, rounds/min	250
Muzzle velocity, m/s	850
Iron Sight range, m	1500
Effective firing range, m	1000
Maximum firing range, m	3800
Feeding	Attachable Ammunition Box of 200 rounds via M13 disintegrating metallic links.
Ammunition box capacity, rounds	200
Barrel length, mm	545
Sight radius, mm	660
Overall length, mm	1200
Weight without ammunition box, kg	9.3
Weight of tripod, kg	4.5
Weight of loaded ammunition box, kg
● With loaded 200-round metal belt	6.6
System life, rounds	25 000
Mode of operation	Gas operated

Specifications

Calibre, mm

7.62

Ammunition, mm

7.62x51

Fire mode

automatic, single

Cyclic rate of fire, minimum ,rounds/min

650

Practical rate of fire, rounds/min

250

Muzzle velocity, m/s

850

Iron Sight range, m

1500

Effective firing range, m

1000

Maximum firing range, m

3800

Feeding

Attachable Ammunition Box of 200 rounds via M13 disintegrating metallic links.

Ammunition box capacity, rounds

200

Barrel length, mm

545

Sight radius, mm

660

Overall length, mm

1200

Weight without ammunition box, kg

9.3

Weight of tripod, kg

4.5

Weight of loaded ammunition box, kg

● With loaded 200-round metal belt

6.6

System life, rounds

25 000

Mode of operation

Gas operated
