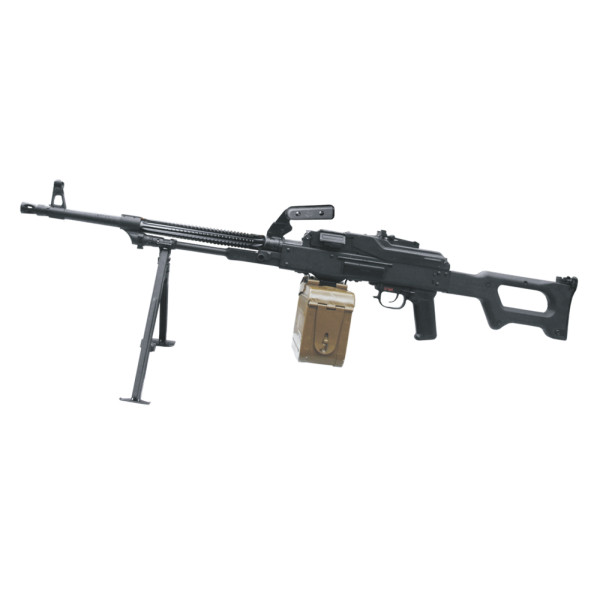

7.62x54 mm ARSENAL Machine Guns MG-1M
NSN: 1005-50-001-0625
Overview
7.62x54 mm ARSENAL Machine Guns MG-1M are powerful automatic weapons, used as armament against enemy troops and firing points.
The MG-1M design is specially intended and allows operation of the weapon in heavy climatic conditions, which are typical for the regions of Middle East, south-east Asia and Africa.
Main Features:
- Chromium plated Barrel, manufactured by the method of cold radial forging, has increased cooling surface.
- Modern design of the Flash Suppressor-Compensator.
- Butt and Hand grip, made of high quality and resistant glass fiber reinforced polycaproamide, not effected after heating by direct sun lights, corrosion and humidity resistance, light and firm.
- Feeding by 100- or 200-round metal belt, put in a box.
- The MG-1M can be easily mounted on Arsenal Tripod TAR-MG, that provides precision and efficient fire at air and ground targets.
Optional Extras (Paid Separately):
- blank firing attachment - set (bushing & frame);
- rail for sighting devices.
|
|---|
| Second barrel |
| Bag with spare parts consisting of: firing pin, extractor, extractor spring, extractor pin, locking pin of extractor pin |
| Box with accessories (brush, drift, scourer, screwdriver) |
| Extracting device for split cartridge cases |
| Cleaning rod |
| Sling |
| 2 pcs. metal belt for 100 cartridges |
| 2 pcs. ammunition box for metal belt for 100 cartridges |
| Canvas for second barrel |
| Canvas for machine gun |
| 2 pcs. metal belt for 200 cartridges |
| 2 pcs. ammunition box for metal belt for 200 cartridges |
|
|---|
| Number of machine guns in one wooden case | 2 |
| Case dimensions, mm | 1330x525x350 |
| Gross weight of the wooden case, kg | 72 |
| Volume of the wooden case, m3 | 0.25 |
| MG-M1 | cal.7.62x54 |
|---|
| Calibre, mm | 7.62 |
| Cartridge, mm | 7.62x54 |
| Fire mode | Automatic |
| Rate of fire, rounds/min | 650 |
| Practical rate, rounds/min | 250 |
| Muzzle velocity, m/s | 825 |
| Maximum firing range, m | 3800 |
| Maximum effective firing range, m | 1000 |
| Sighting range, m | 1500 |
| Ammunition box capacity, rounds | 100/200 |
| Barrel length, mm | 605 |
| Sight radius, mm | 663 |
| Overall length, mm | 1160 |
| Weight without ammunition box, kg | 9.0 |
Weight of loaded ammunition box |
| ● With loaded 100 round metal belt, kg | 3.9 |
| ● With loaded 200 round metal belt, kg | 6.5 |
| System life, rounds | 28 000 |
| Principle of function | Gas operated |
