Barrel length, mm
215/215

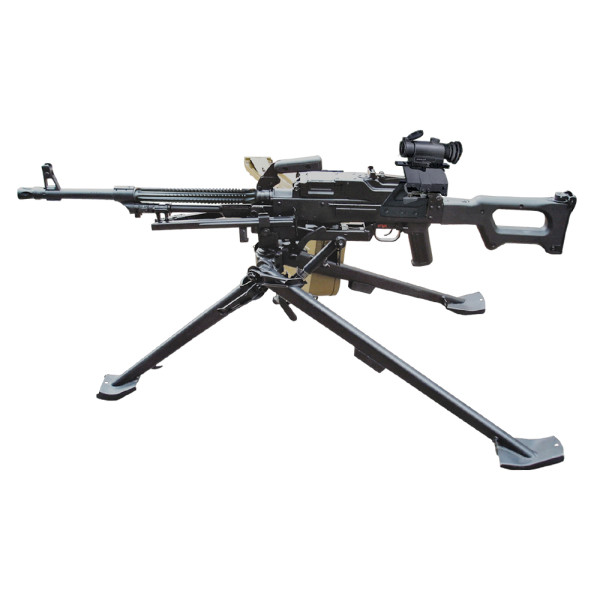

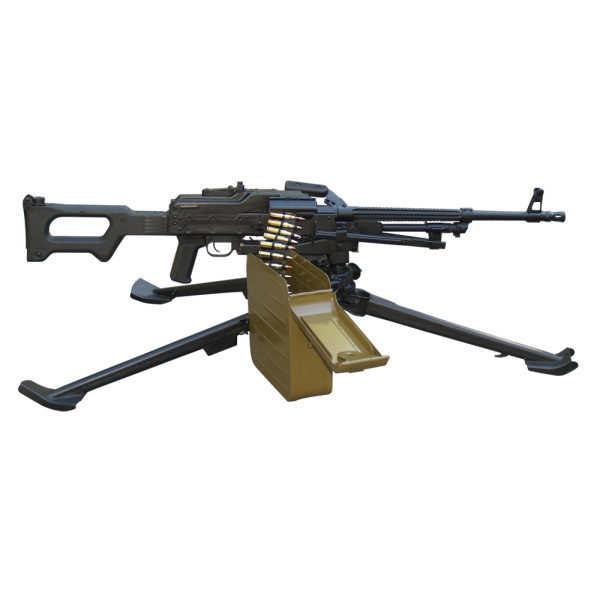

7.62x54 mm ARSENAL Machine Guns MG-1MS
NSN: 1005-50-001-0624
Overview
7.62x54 mm ARSENAL Machine Guns MG-1MS on Support (tripod) are powerful automatic weapons, used as armament against enemy troops, firing points and light air targets.
The MG-1MS design is specially intended and allows operation of the weapon in heavy climatic conditions, which are typical for the regions of Middle East, south-east Asia and Africa.
In general, the 7.62 mm MG-1MS preserves all technical characteristics of PKS and PKMS, but the results of the endurance test show that the System life and the barrel life of MG-1MS are increased in about 30% in comparison with PKMS, which is a result of some changes of the mechanisms and the increased cooling surface of the barrel.
Main Features:
- Chromium plated Barrel, manufactured by the method of cold radial forging, has increased cooling surface.
- Modern design of the Flash Suppressor-Compensator.
- Butt and Pistol grip, made of high quality and resistant glass fiber reinforced polycaproamide, not effected after heating by direct sun lights, corrosion and humidity resistance, light and firm.
- Feeding by 200-round metal belt, put in a box.
- As support a tripod is provided to achieve more precision and efficiency of fire at air and ground targets.
In general, the 7.62 mm MG-1MS preserves all technical characteristics of PKS and PKMS, but the results of the endurance test show that the System life and the barrel life of MG-1MS are increased in about 30% in comparison with PKMS, which is a result of some changes of the mechanisms and the increased cooling surface of the barrel
Optional Extras (Paid Separately):
- Blank fire attachment - set (bushing & frame),
- Rail for sighting devices.
|
|---|
| Second barrel |
| Bag with spare parts consisting of: firing pin, extractor, extractor spring, extractor axle, pin of the Extractor axle |
| Box with accessories |
| Extracting device for split cartridge cases |
| Cleaning rod |
| Sling |
| 4 pcs. metal belt for 200 cartridges |
| 4 pcs. ammunition box for metal belt for 200 cartridges |
| Bag for second barrel |
| Bag for machine gun |
| 2 pcs. Cross strap |
| Breast strap |
| Strap for fixing 2 pcs. ammunition boxes to the tripod in travelling position |
|
|---|
| Number of machine guns in one wooden case | 1 |
| Case dimensions, mm | 1330x525x350 |
| Gross weight of the wooden case, kg | 53 |
| Volume of the wooden case, m3 | 0.25 |
| MG-1MS / cal. 7.62x54 |
|---|
| Calibre, mm | 7.62 |
| Cartridge, mm | 7.62x54 |
| Fire mode | Automatic |
| Rate of fire, rounds/min | 650 |
| Practical rate, rounds/min | 250 |
| Muzzle velocity, m/s | 825 |
| Maximum firing range, m | 3800 |
| Maximum effective firing range, m | 1000 |
| Sighting range, m | 1500 |
| Ammunition box capacity, rounds | 200 |
| Barrel length, mm | 605 |
| Sight radius, mm | 663 |
| Overall length, mm | 1160 |
| Weight without ammunition box, kg | 9.0 |
| Weight of tripod, kg | 4.5 |
| Weight of loaded ammunition box with loaded 200 round belt, kg | 6.5 |
| System life, rounds | 28 000 |
| Principle of function | Gas operated |
