Barrel length, mm
215/215
7.62x54 mm ARSENAL Machine Guns MG-M1S
NSN: 1005-50-000-0211
Overview

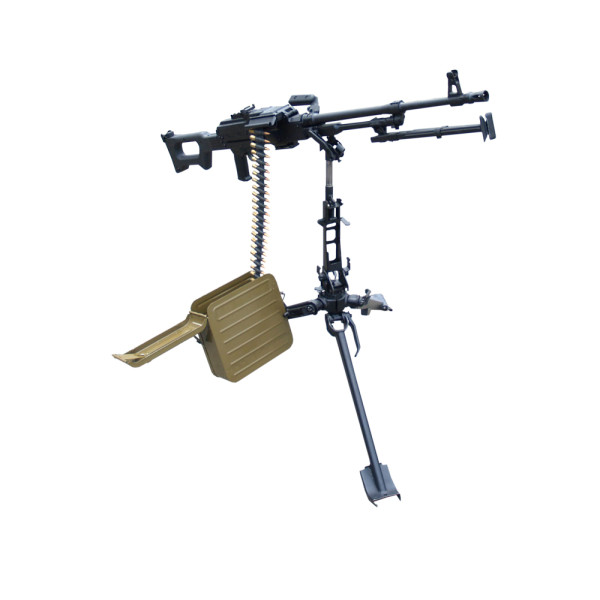

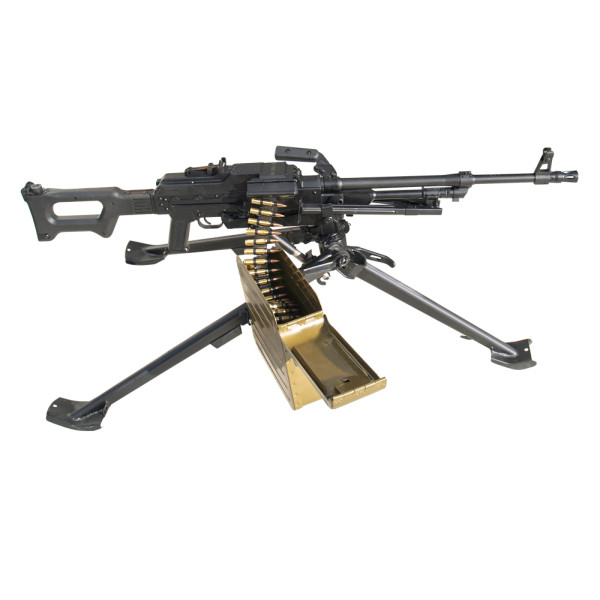

7.62x54 mm ARSENAL Machine Guns MG-M1S on Support (tripod) are powerful automatic weapons, used as armament against enemy troops, firing points and light air targets.
Main Features:
- Chromium plated Barrel, manufactured by the method of cold radial forging.
- Modern design of the Flash Suppressor-Compensator.
- Butt and Pistol grip, made of high quality and resistant glass fiber reinforced polycaproamide, not effected after heating by direct sun
- Lights, corrosion and humidity resistance, light and firm.
- Feeding by 200-round metal belt, put in a box.
- As support a tripod is provided to achieve more precision and efficiency of fire at air and ground targets.
Optional Extras (Paid Separately):
- Blank fire attachment - set (bushing & frame);
- Rail for sighting devices.
|
|---|
| Second barrel |
| Bag for spare parts consisting of: firing pin, extractor, extractor`s spring, extractor`s axle, pin of the Extractor`s axle |
| Box with accessories |
| Extracting device for split cartridges cases |
| Sling |
| Oil can |
| Cleaning rod |
| 2 pcs. metal belt for 200 cartridges |
| 2 pcs. box with belt for 200 cartridges |
| 2 pcs. metal belt for 100 cartridges |
| 2 pcs. box with belt for 100 cartridges |
| Bag for machine gun |
| Bag for second barrel |
|
|---|
| Number of machine guns in one wooden case | 2 |
| Case dimensions, mm | 1330x525x350 |
| Gross weight of the wooden case, kg | 72 |
| Volume of the wooden case, m3 | 0.25 |
|
|---|
| Calibre, mm | 7.62 |
| Cartridge, mm | 7.62x54 |
| Fire mode | Automatic |
| Rate of fire, rounds/min | 600...700 |
| Practical rate of fire, rounds/min | 250 max |
| Muzzle velocity, m/s | 825 |
| Sighting range, m | 1500 |
| Maximum firing range, m | 3800 |
| Maximum effective firing range, m | 1000 |
| Ammunition box capacity, number of rounds | 100/200 |
| Barrel length, mm | 605 |
| Sight radius, mm | 663 |
| Overall length, mm | 1192 |
| Weight without ammunition box, kg | 9.1 |
Weight of loaded ammunition box, kg |
| ● Box with belt of 100 | 3.9 |
| ● Box with belt of 200 | 6.5 |
| System life, rounds | 25 000 |
| Principle of function | gas operated automatic machine gun |
