26 mm Signal Cartridge and 26 mm Signal Pistol ZARYA

26 mm Signal Cartridge and 26 mm Signal Pistol ZARYA
26 mm Signal Cartridge and 26 mm Signal Pistol ZARYA

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

26 mm Pistol Fired Signal and Illumination Cartridge and 26 mm Signal Pistol ZARYA

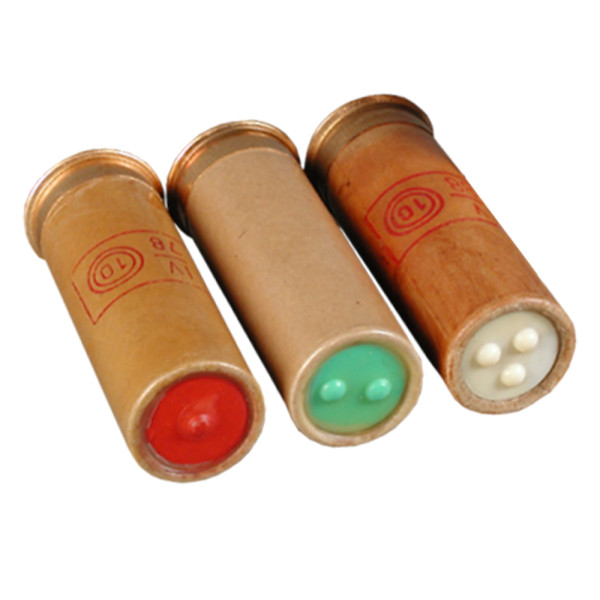

26 mm Pistol Fired Signal and Illumination Cartridges are intended for signalization in night and day conditions and for ground area illumination.

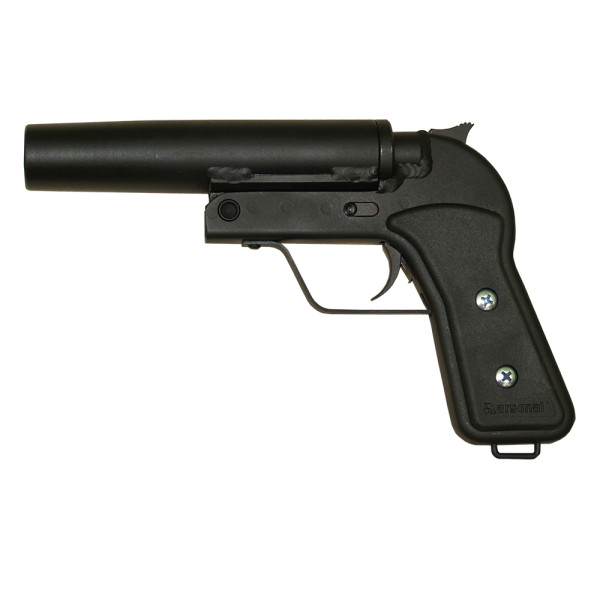

ZARYA Signal Pistol is developed and is designed for firing of 26 mm signal and illumination cartridges.

The Signal Pistol consists of frame with firing-trigger mechanism, and barrel, and is operated by one person.

The article’s use is at most simplified and the pistol is very easy for maintenance and repair.

The article excludes the possibility of accidental discharge.

Overview

Components:

Cardboard cartridge case

Primered metallic cup

Expelling charge

Star

Identification cap

Packing
26 mm Pistol Fired Signal and Illumination Cartridge
Cartridges are packed in a plastic bag15 pcs.
Plastic bags arranged in a wooden case22 pcs.
Total330 units in a wooden case
Wooden case
● Overall dimensions, mm875x398x206
● Weight, kg28 kg (green / red); 29 kg (white);
● Volume, m***30.072m3
● Overall dimensions, mm1380x530x387
● Weight, kg87
● Volume, m***30.28m3
26 mm Signal Pistol ZARYA
Pcs. placed in a wooden case45 pcs.
TECHNICAL CHARACTERISTICS
26 mm Pistol Fired Signal and Illumination Cartridge
Dimensions
● Overall height, mm74 + 79
● Outer diameter, mm26.1 + 26.6
Types and colour
● Signalgreen or red
● Illuminatingwhite
Burning time, sfrom 6.5 to 9.5
Stars ascent height, mover 90
Visibility of the signal
● In day-time, kmnot less than 2
● At night, kmnot less than 7
Angle of cartridges firing
● For signal, degreesfrom 80 to 90
● For illuminating, degreesfrom 45 to 60
Radius of illuminating area at night, mover 100
CLASS OF EXPLOSION HAZARD1.4S, UN 0405
StabilityThe product’s design and the manufacturing process ensure stability at the time of transportation with all kinds of transport means. The products are moisture resistant.
Shelf life in storage conditions5 years, if stored in standard packing of the producer
26 mm Signal Pistol ZARYA
Calibre, mm26
Length, mm235
Barrel length, mm150
Height, mm145
Width, mm32
Weight, g850
FeedingManually, one round
Operational temperature range, °Cfrom minus 50 to 50
Practical rate of fire *1 shot per 4÷5 s
Flare’s flight altitude, mnot less than 90
Angle of fire, degreesfrom 800 to 900
Combustion time, s6.5÷9.5
Resource, shots1000
Flare’s type
● 26.5 mm pistol cartridgeilluminating /white/
● 26.5 mm pistol cartridgessignal /green and red/
