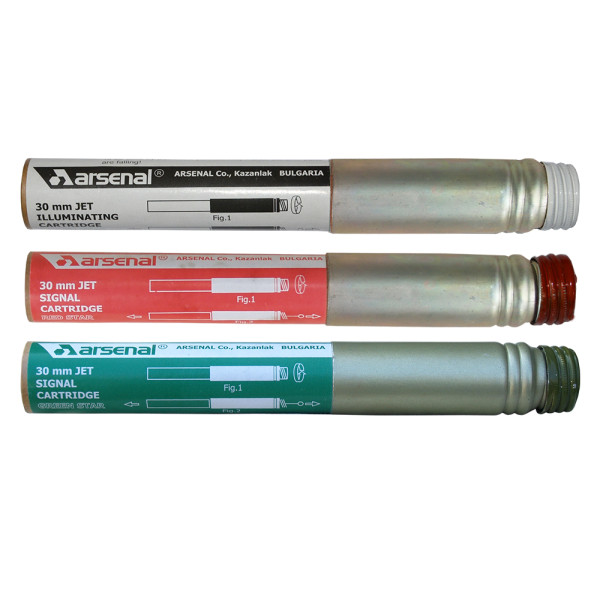

30 mm Jet Signal and Illumination Cartridges

The 30 mm Jet Signal and Illumination Cartridge is used for colour signalling at any time of day and night and for ground area illumination.

Packing 5 sets of articles (each one consisting of Trip Flare, Fuze, Wire and Post) are packed in an air-tight plastic bag;10 plastic bags are arranged in a wooden case (A total of 50 sets in a wooden case)
Wooden case dimensions, mm	875x398x206
Wooden case gross weight, kg	40
Wooden case volume, m³	0.072

TECHNICAL CHARACTERISTICS
Dimensions
● Overall height, mm	230
● Outer diameter, mm	32
Weight
● Of white illuminating cartridge, g	approx. 190
● Of red and green signal cartridges, g	approx. 172
Types and colour
● One-star, signal	green or red
● One-star, illuminating	white
Burning time
● One-star, signal, s	not less than 9
● One-star, illuminating, s	not less than 8
Stars ascent height
● Red, green, m	not less than 150
Distance of stars flight
● White, m	not less than 350
Visibility and distinguishing of the signal
● In day-time, km	not less than 2
● At night, km	not less than 10
Angle of cartridges firing
● For signal, degrees	from 80 to 90
● For illuminating, degrees	from 45 to 60
Candlepower (illuminating), cd	not less than 100 000
CLASS OF EXPLOSION HAZARD	1.3G UN 0195
