Trip Flares TF-W, TF-G and TF-R

INTENDED USE:

TRIP FLARES TF-W, TF-G and TF-R are used to give warning when guarding sites, facilities, storehouses, etc.
On activation a sound effect starts, followed by signal stars.

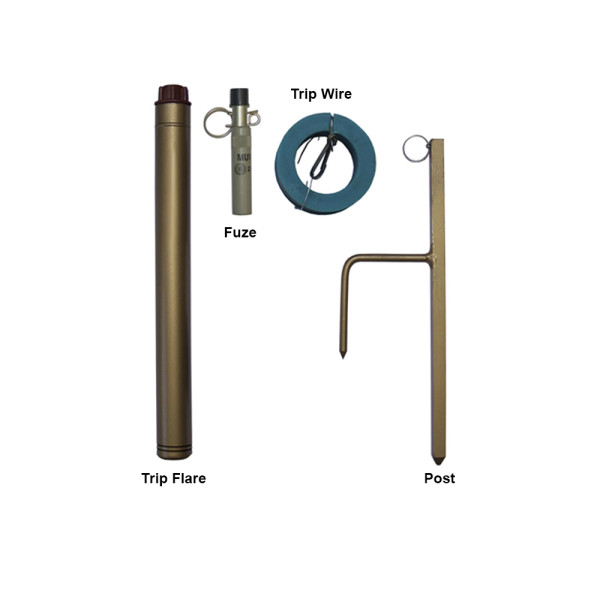

Packing 5 sets of articles (each one consisting of Trip Flare, Fuze, Wire and Post) are packed in an air-tight plastic bag;10 plastic bags are arranged in a wooden case (A total of 50 sets in a wooden case)
Wooden case dimensions, mm	875x398x206
Wooden case gross weight, kg	40
Wooden case volume, m³	0.072

TECHNICAL CHARACTERISTICS
Dimensions
● Overall height, mm	290
● Outer diameter	25
● Trip wire length, mm	4830 ± 100
Weight, kg	not more than 0.290
Colour signal stars	white, green, red
Total duration of sound effect and signal stars visibility, s	max 30
Range of stars visibility, m	not less than 500
Range of audibility, m	not less than 300
Effect activation	sound and light signalling
Max number of ascent signal stars	up to 15
Height of stars complete burning upon their falling, m	up to 5
CLASS OF EXPLOSION HAZARD	1.1G; UN 0194
